JQG9031 Chimney Hood | FOTILE Kitchen Appliances Malaysia

Hood

Chimney Hood

JQG9031

Installation Diagram

User Manual

Installation Guide

Watch the Video

Product Highlight

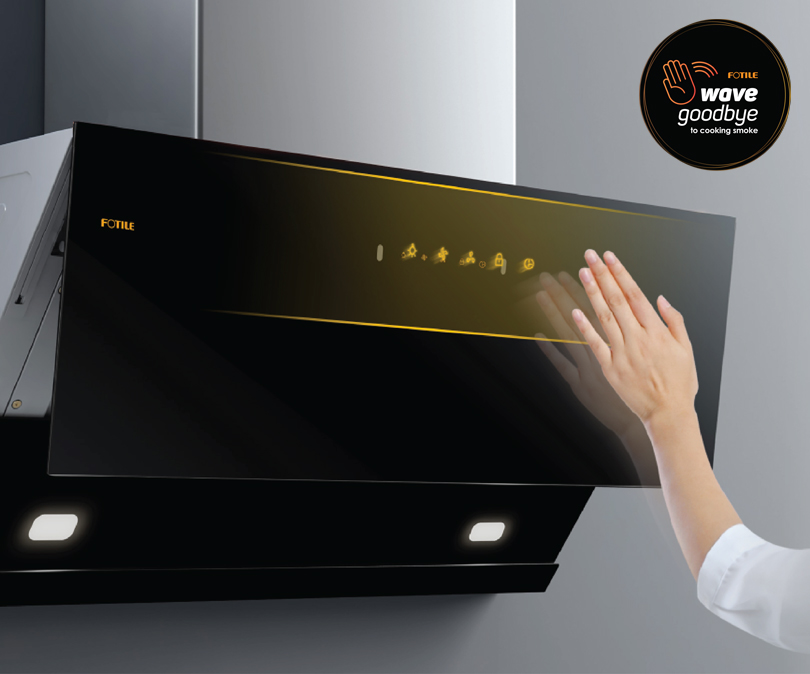

Wave Goodbye to Cooking Smoke

Goodbye to cooking smoke with a wave of hand. Wave to switch on or switch off the hood.

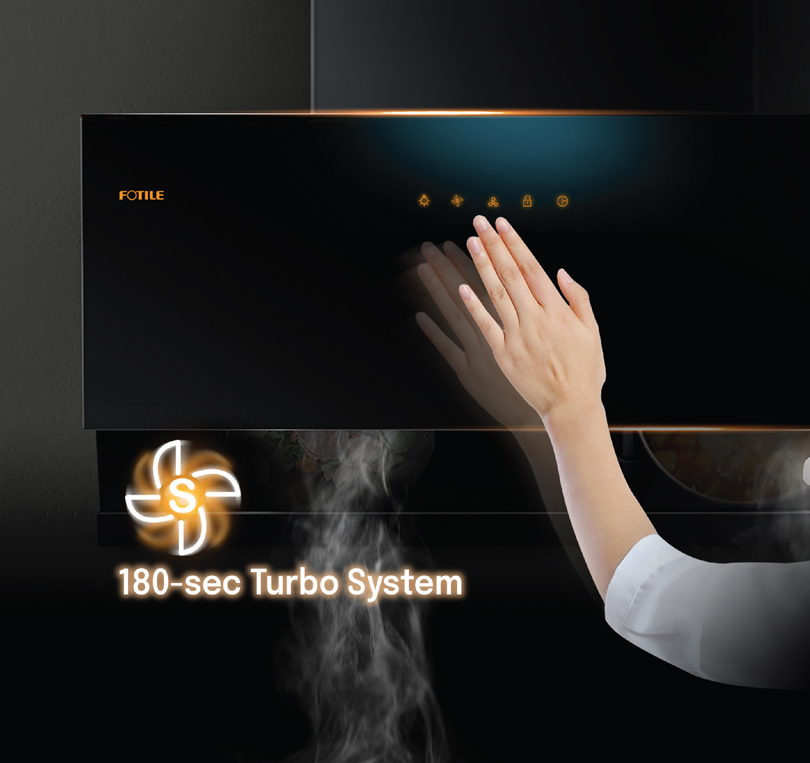

Smart SMOTION Detection (smoke + motion)

180-second Turbo Vacuum sweeps away all traces of smoke using 460Pa of air pressure
Turn the hood on or off with a wave of your hand

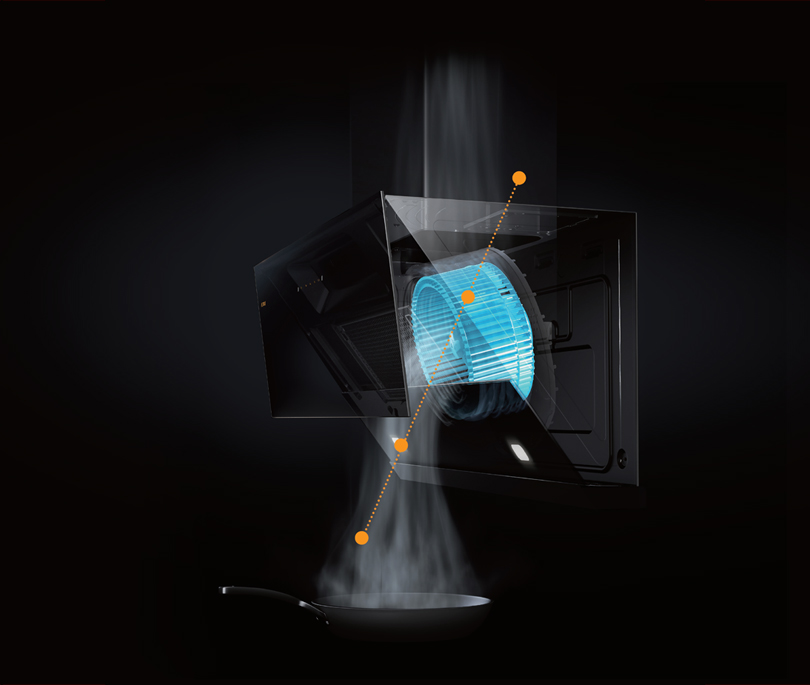

SpeedVac Technology

A direct 4-point extraction system that instantly removes grease
Trap cooking smoke before it starts to spreads

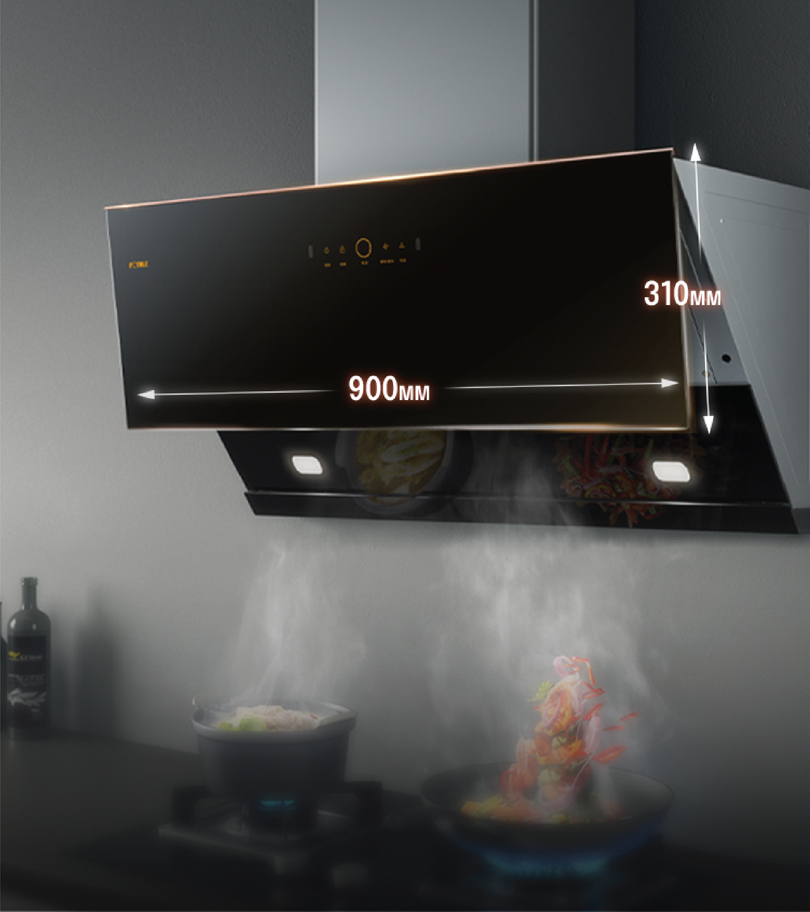

Umbrella Containment Field

900mm chamber and 310mm-long plate contain the spread of cooking smoke in a confined area
Adjustable 135o cover prevents grease from coming in contact with your face
Blocks cooking smoke without obstructing your view

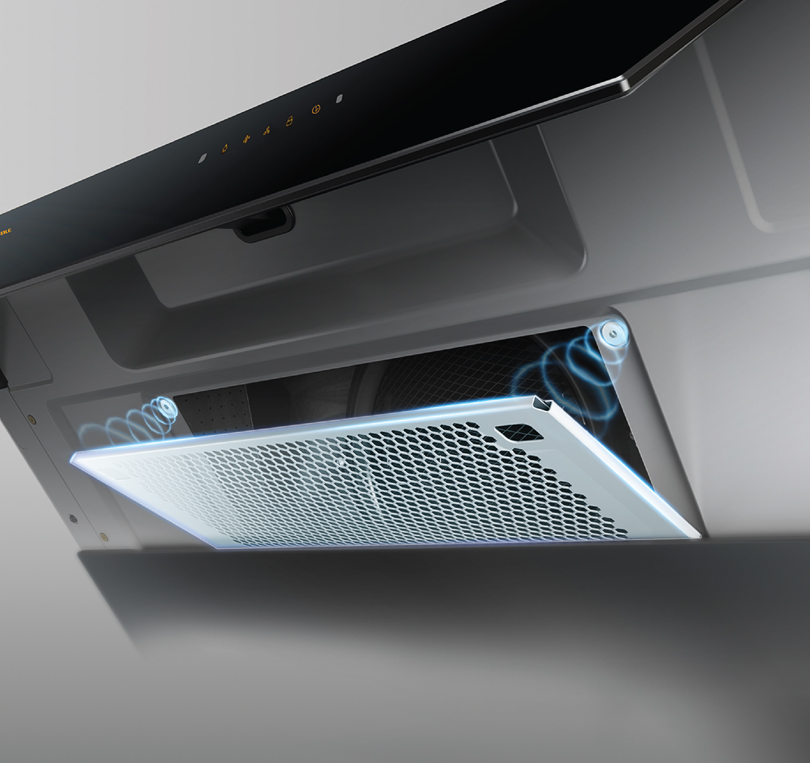

MagEasy Filter Design

Unique magnets running through the grease filter allow for easy attachment and detachment when necessary

Specifications

Certification

CB, SIRIM

Type of Motor

AC Motor

Material of hood

90cm wide tempered glass surface

Unrestrained airflow (m3/hr)

1750

IEC airflow (m3/hr)

1340

Motor Power (W)

358

Max Static Pressure (Pa)

460

Noise Level (dB)

No. of Speeds Fan Control

Illumination Power in LED (W)

1.5W x 2

Type of hood

Chimney hood

Oil Filtration Rate

95%

Odor Reduction Rate

98%

Automatic Turbo System

NIL

Smart Smoke and Sound Detection

NIL

Intelligent Air Management

NIL

Anion Sterilisation

NIL

Delay Off Function

YES

Control Mode

Touch + Wave

Type of Filter

Magnetic filter

Special Features

NIL

Power Supply

240V/50hZ

Dimension W x D x H (mm)

896 x 405 x 434
