Product Highlight

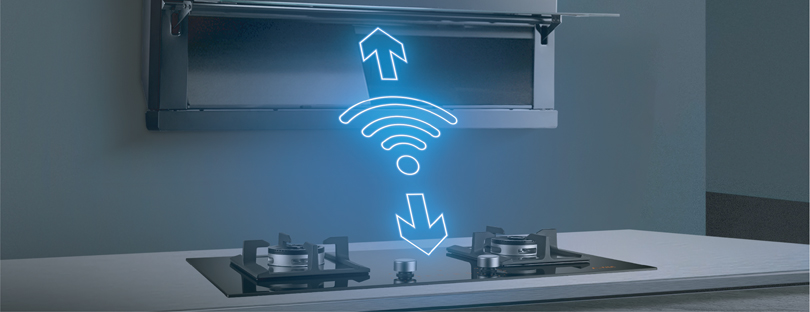

Smart Sync

Sync gas hob with range hood. Upon gas hob ignition, range hood automatically turns on to remove cooking smoke.
*Sync function is only available for gas hob model GEG88201.

Smart Sync

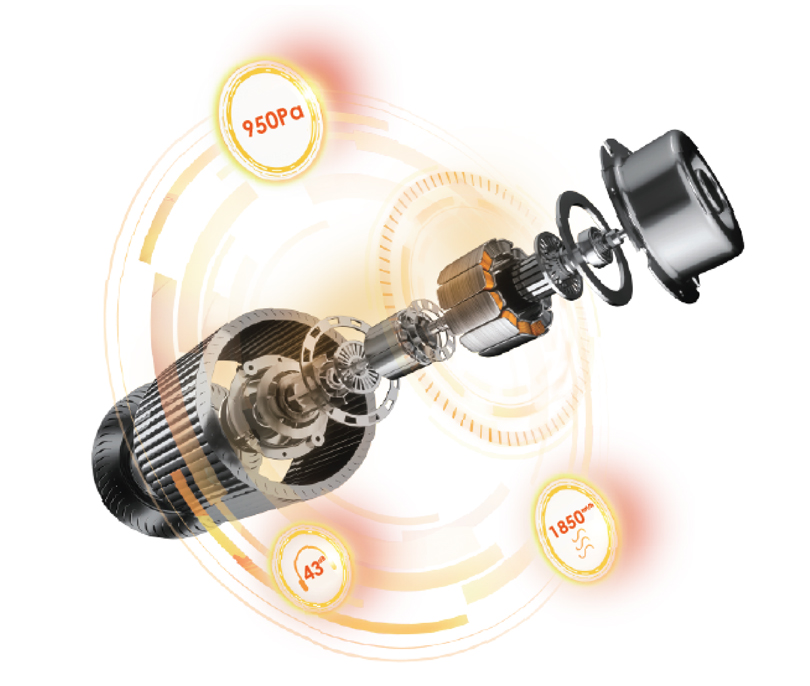

Stronger - Brushless Direct-current Inverter (BLDC)

More Powerful, Better Efficiency - The Brushless Direct Current (BLDC) motor has a maximum static pressure of 990 Pa that handles long and winding air ducts and complicated installation spaces with ease.

Its maximum air flow of 1930m3/h refreshes all the air in a kitchen within 1.5 minutes, at the same time, keeping noise level as low as 42dB.

Stronger - Brushless Direct-current Inverter (BLDC)

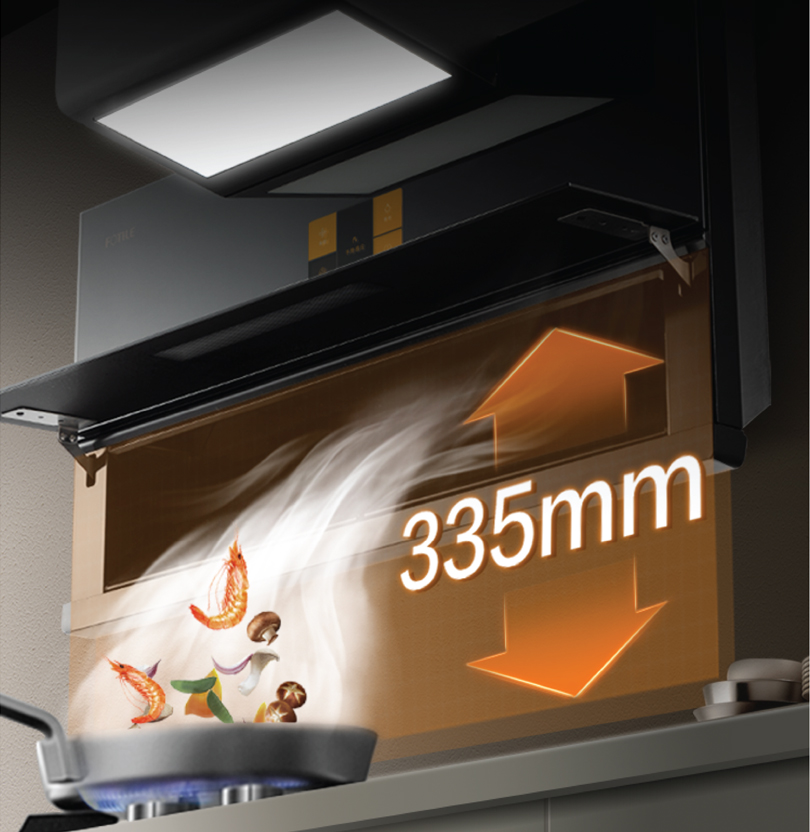

Closer - Closer Extraction From Cooking Smoke

Closer Extraction - Only 335mm from the stove — almost half the distance of a traditional range hood — the FOTILE X-Series captures cooking smoke straight at the source.

Wide Suction Plate - Its 900mm-wide suction plate intercepts cooking smoke and extracts it before it spreads.

Closer - Closer Extraction From Cooking Smoke

Faster - Cooking Smoke Highway

Rear Extraction Design - The rear extraction design allows the extraction motor to rotate 180°, actively reducing the distance of cooking smoke and extracting it in a straight path.

Nautilus Air Passageway reduces wind resistance and noise. With the 3-point Extraction System, cooking smoke is collected, extracted and removed in a single uninterrupted path.

Faster - Cooking Smoke Highway

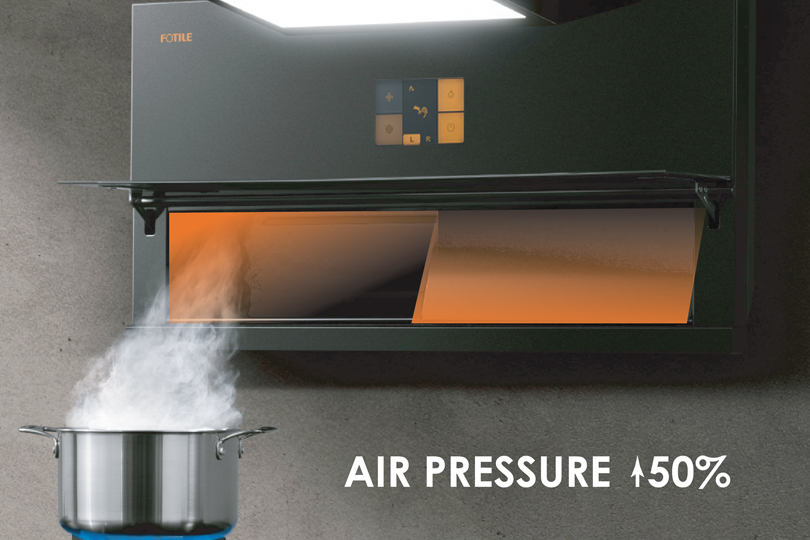

Smarter - Smart Air Distribution

Intelligent Air Distribution - With a touch of a button, the FOTILE X-Series can focus its extraction power to either side of the hood, depending on where cooking smoke is concentrated. From stewing to stir-frying, the FOTILE X-Series concentrates extraction power to extract cooking smoke while minimizing noise for a more peaceful cooking experience.

Left Power Diverter: Diverts 70% of extraction power to the left side of the hood
Right Power Diverter: Diverts 70% of extraction power to the right side of the hood
When this function is activated, air pressure can increase by up to 50% on either side.

Smarter - Smart Air Distribution

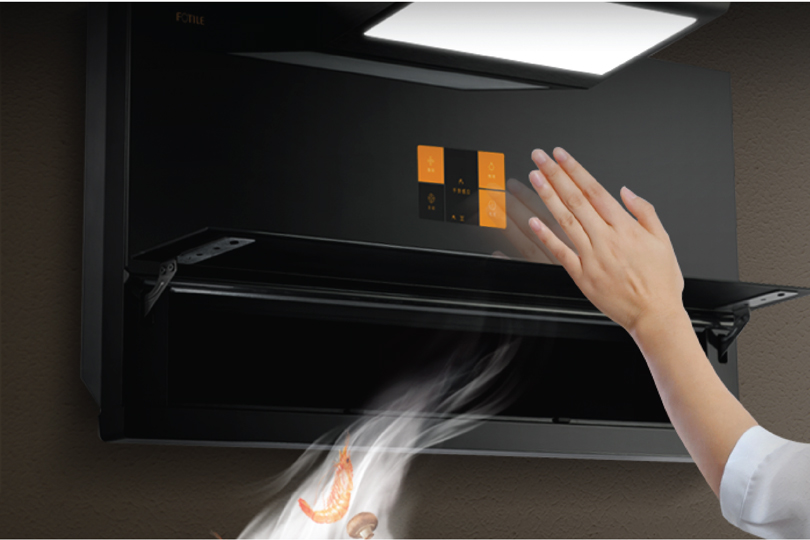

Smart Smotion (Smoke + Motion) Detection

Turn the hood on and off with the wave of a hand

Smart Smotion (Smoke + Motion) Detection

Easy To Clean

All-new filter-free design with glass frame, just wipe to restore it to its original lustre

Easy To Clean

Low Noise Level

BLDC motor with multiple noise-reduction technologies. Noise level produced is as low as 42dB.

Low Noise Level
Specifications
Certification
CB, SIRIM
Type of Motor
Brushless DC Inverter Motor with Microchip Technology
Material of hood
90cm wide tempered glass surface
Unrestrained airflow (m3/hr)
1930
IEC airflow (m3/hr)
1390
Motor Power (W)
258
Max Static Pressure (Pa)
990
Noise Level (dB)
46
No. of Speeds Fan Control
3
Illumination Power in LED (W)
10 W (3 levels – adjustable)
Type of hood
Chimney hood
Oil Filtration Rate
92%
Odor Reduction Rate
97%
Automatic Turbo System
YES
Smart Smoke and Sound Detection
NIL
Intelligent Air Management
NIL
Anion Sterilisation
NIL
Delay Off Function
YES
Control Mode
Touch + Wave
Type of Filter
Filter free
Special Features
Smart Air Diverter
Power Supply
240V/50hZ
Dimension W x D x H (mm)
897 x 325 x 1060
IEC

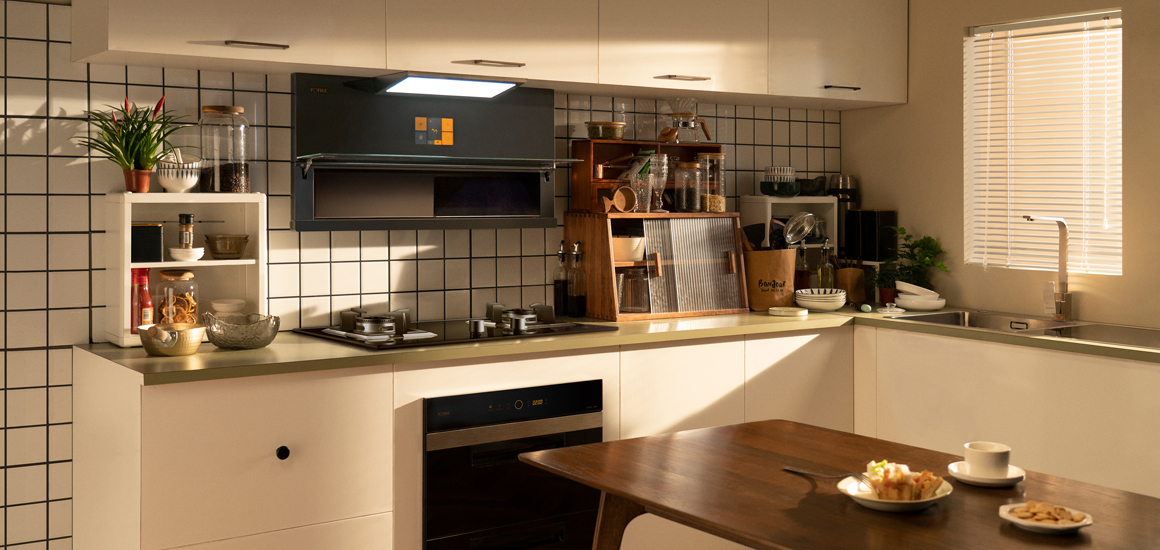

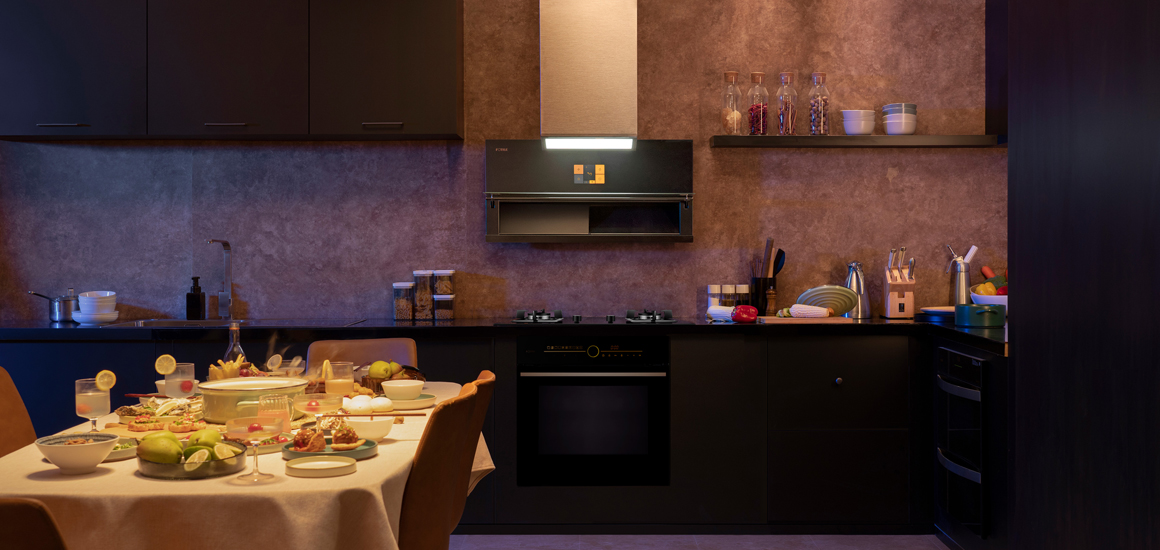

Product Images
