Hood

Product Highlight

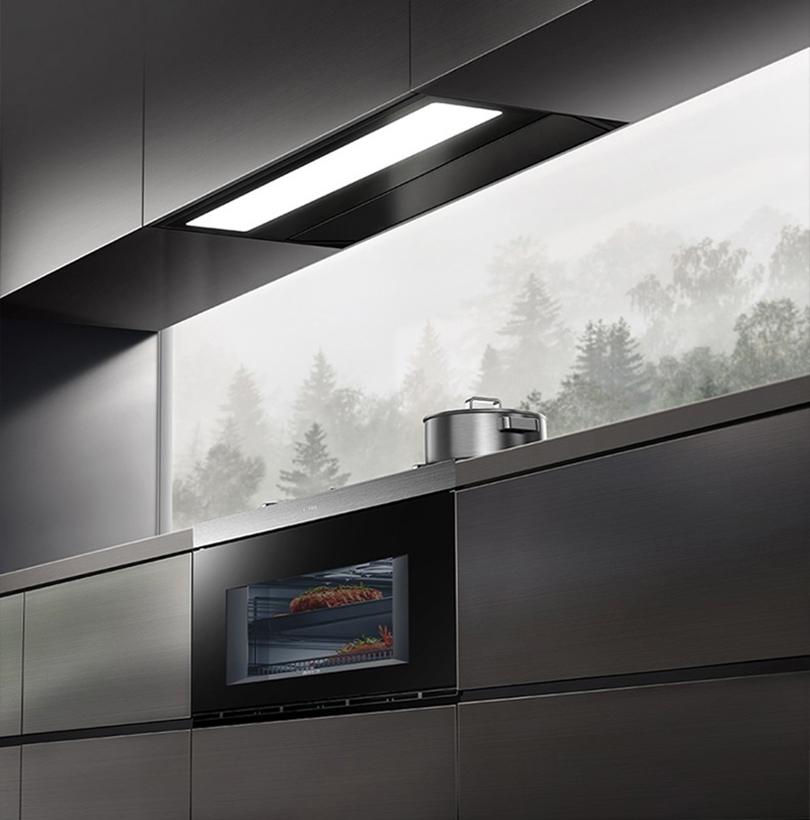

Hidden Hood Design

Flush-mounted into the cabinet, the range hood seamlessly integrates with the cabinet, enhancing the overall aesthetic of the kitchen.

Hidden Hood Design

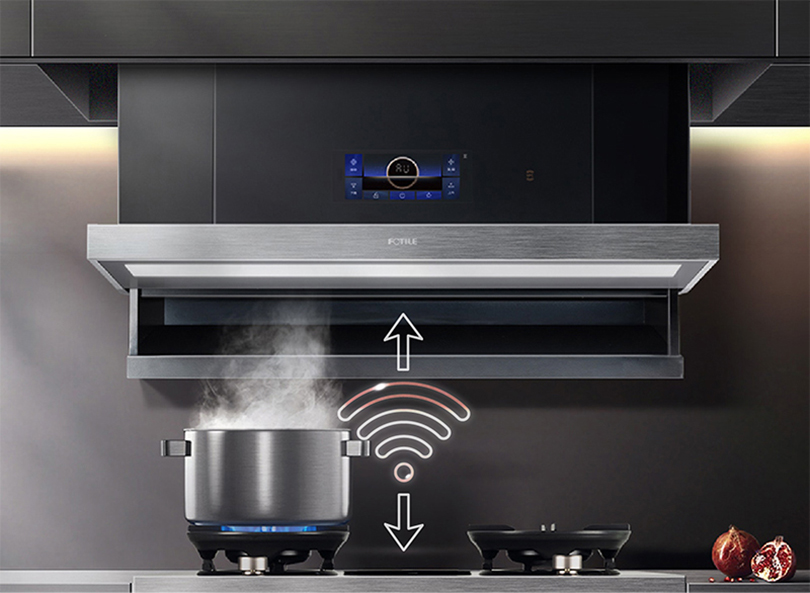

Smart Sync

Sync gas hob with range hood. Upon gas hob ignition, range hood automatically turns on to remove cooking smoke.

Smart Sync

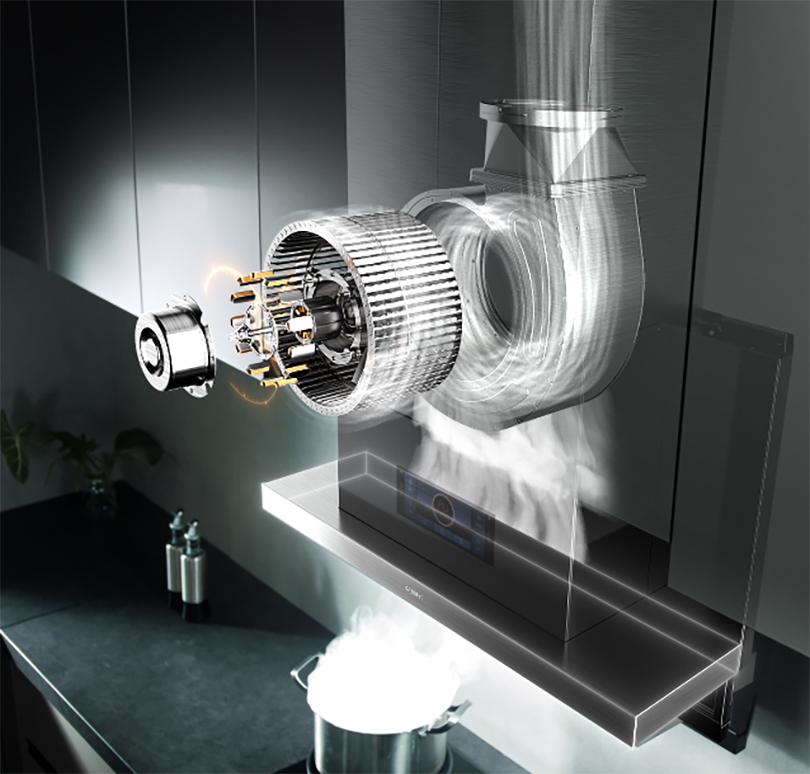

Brushless Direct-current Inverter (BLDC)

More Powerful, Better Efficiency - The Brushless Direct Current (BLDC) motor has a maximum static pressure of 1240 Pa that handles long and winding air ducts and complicated installation spaces with ease.

Its maximum air flow of 2850m3/h, at the same time, keeping noise level as low as 39dB.

Brushless Direct-current Inverter (BLDC)

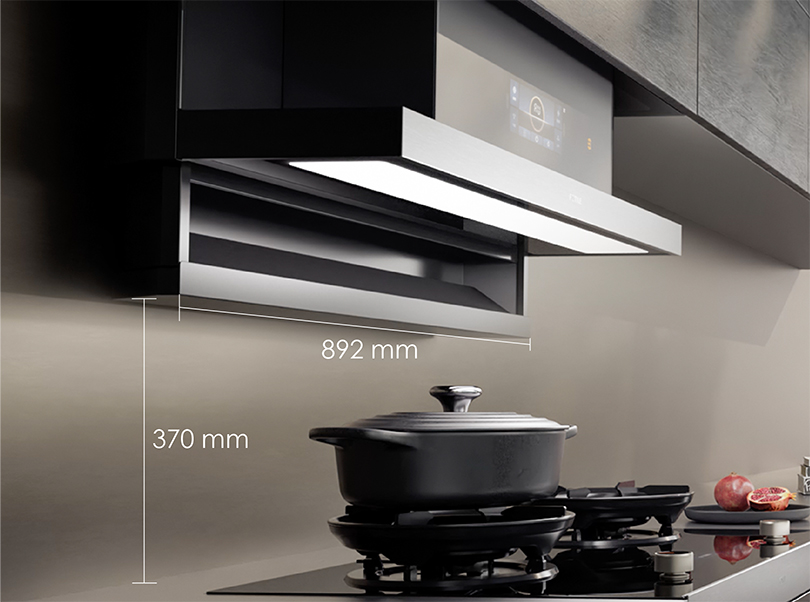

Closer Extraction From Cooking Smoke

Closer Extraction - Only 370mm from the stove, BIG9059 captures cooking smoke straight at the source.

Wide Suction Plate - Its 892mm-wide suction plate intercepts cooking smoke and extracts it before it spreads.

Closer Extraction From Cooking Smoke

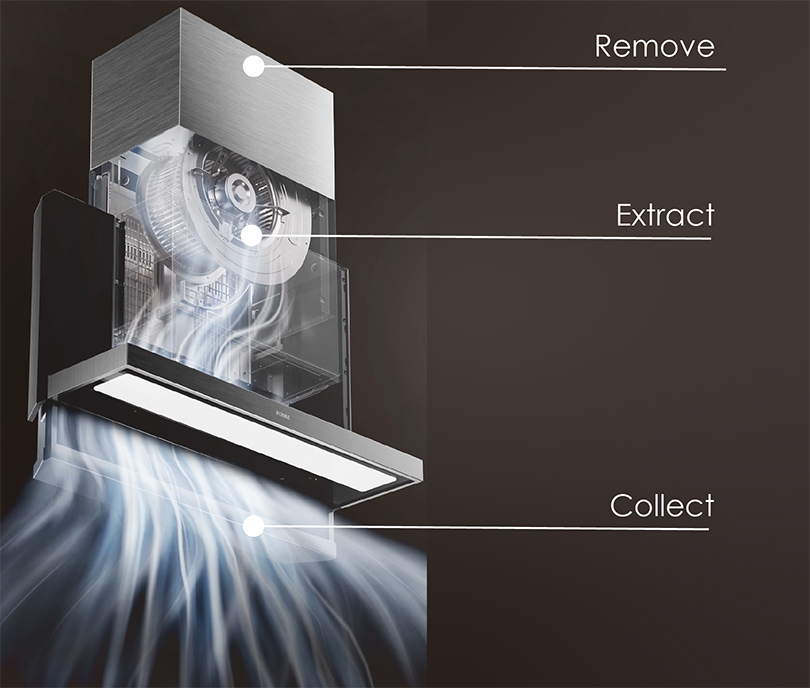

Cooking Smoke Highway

Nautilus Air Passageway reduces wind resistance and noise. With the 3-point Extraction System, cooking smoke is collected, extracted, and removed in a single uninterrupted path.

Cooking Smoke Highway

Smart Smotion (Smoke + Motion) Detection

Turn the hood on and off with the wave of a hand.

Smart Smotion (Smoke + Motion) Detection

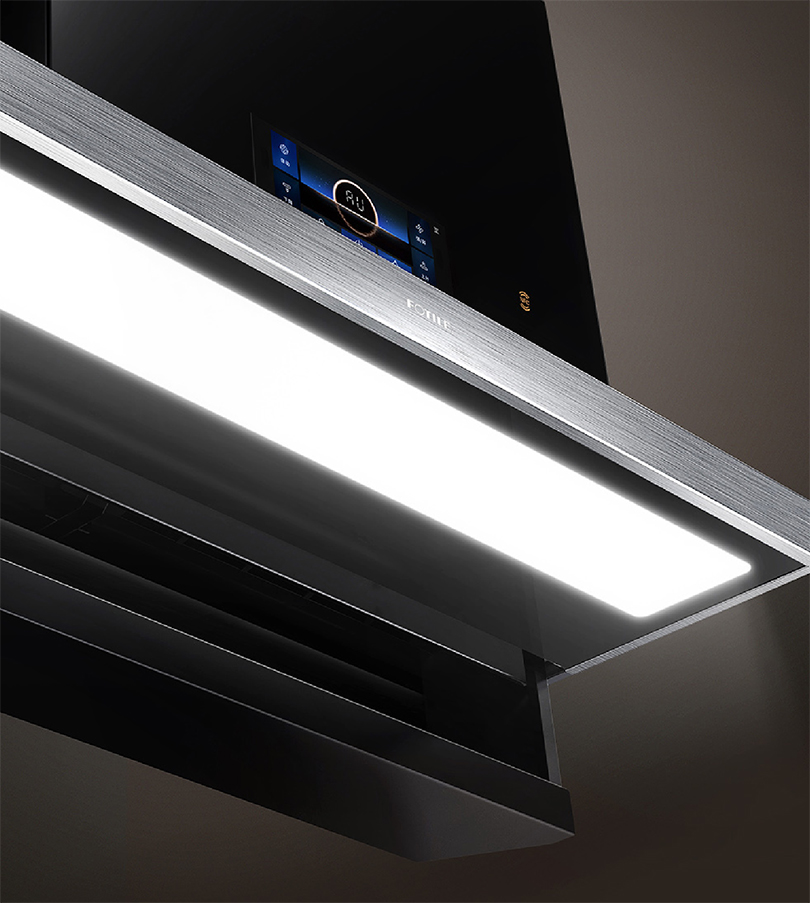

Easy To Clean

All-new filter-free with glass frame, just wipe to restore it to its original lustre.

Easy To Clean

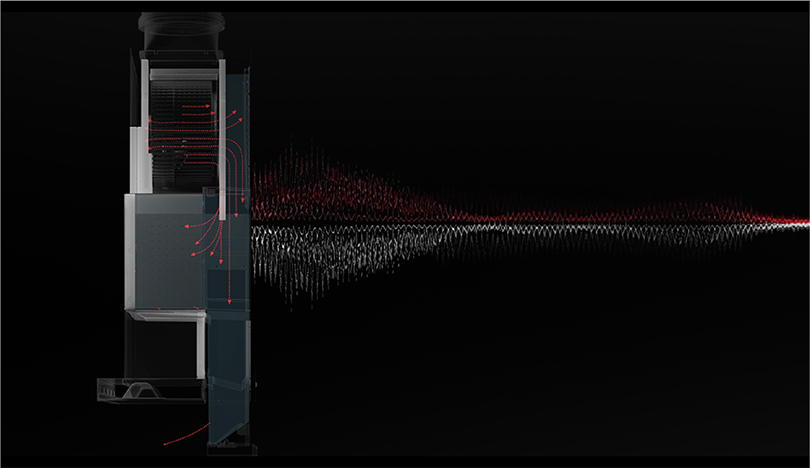

NVH Technology – Low Noise Level

With the Noise + Vibration + Harshness (NVH) technology, it can reduce noise level to as low as 39dB.

NVH Technology – Low Noise Level

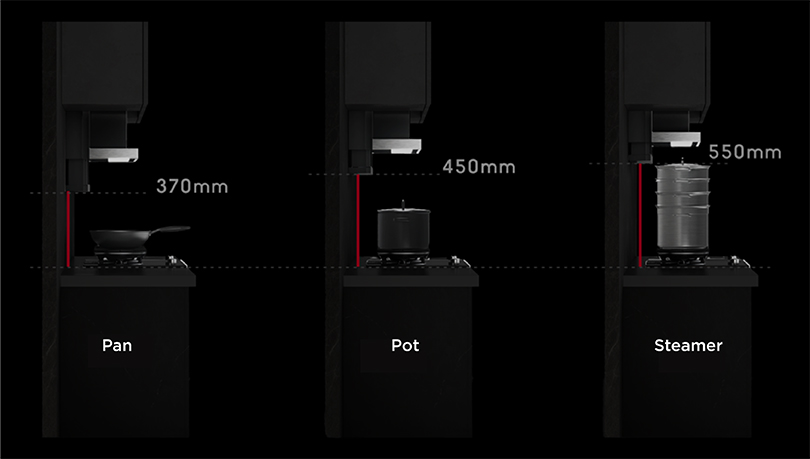

Intelligent Elevation Adjustment

Effortlessly adjust the height with a simple wave or by pressing a button. This feature not only caters to each individual's preferred cooking height, but it also accommodates various cooking vessels, whether you’re using a frying pan or a steamer.

Intelligent Elevation Adjustment
Specifications
Certification
CB, SIRIM
Type of Motor
Brushless DC Inverter Motor
Material of hood
90cm wide tempered glass surface
Unrestrained airflow (m3/hr)
2580
IEC airflow (m3/hr)
1540
Motor Power (W)
450
Max Static Pressure (Pa)
1240
Noise Level (dB)
39
No. of Speeds Fan Control
2
Illumination Power in LED (W)
10
Type of hood
Chimney hood
Oil Filtration Rate
92%
Odor Reduction Rate
97%
Automatic Turbo System
YES
Smart Smoke and Sound Detection
NIL
Intelligent Air Management
NIL
Anion Sterilisation
NIL
Delay Off Function
YES
Control Mode
Touch + Wave
Type of Filter
Filter free
Special Features
Smart sync with gas ho
Hidden Hood Design
Intelligent Elevation Adjustment
Power Supply
220~240V/50hZ
Dimension W x D x H (mm)
892 x 370 x 690
