Hood

Product Highlight

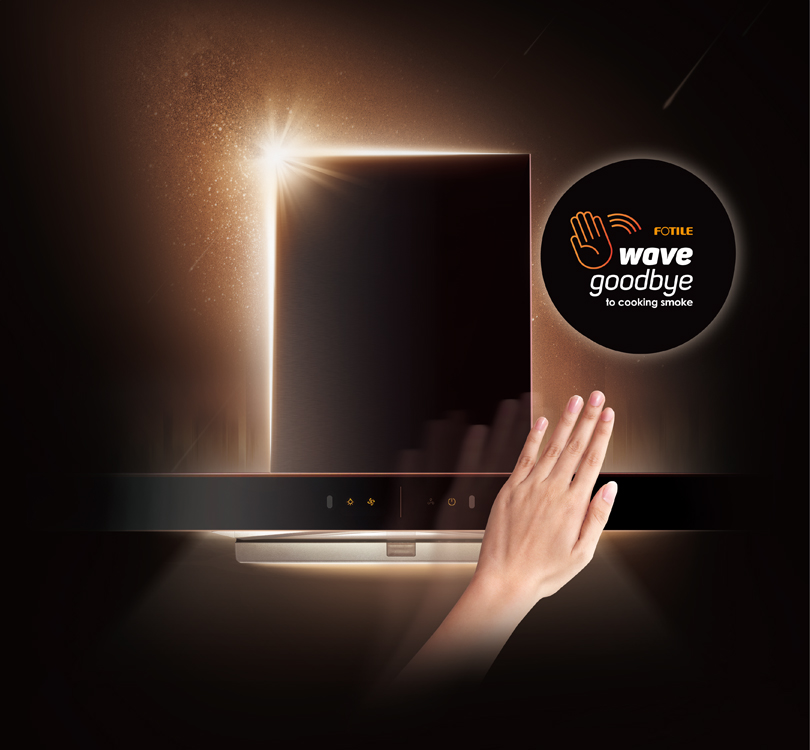

Wave Goodbye to Cooking Smoke

Goodbye to cooking smoke with a wave of hand. Wave to switch on or switch off the hood.

Wave Goodbye to Cooking Smoke

Patented Wing-like Surround Suction Plate

The innovative Surround Suction Technology increases the smoke accumulation area of Fotile W to ensure that grease and smoke cannot escape

Patented Wing-like Surround Suction Plate

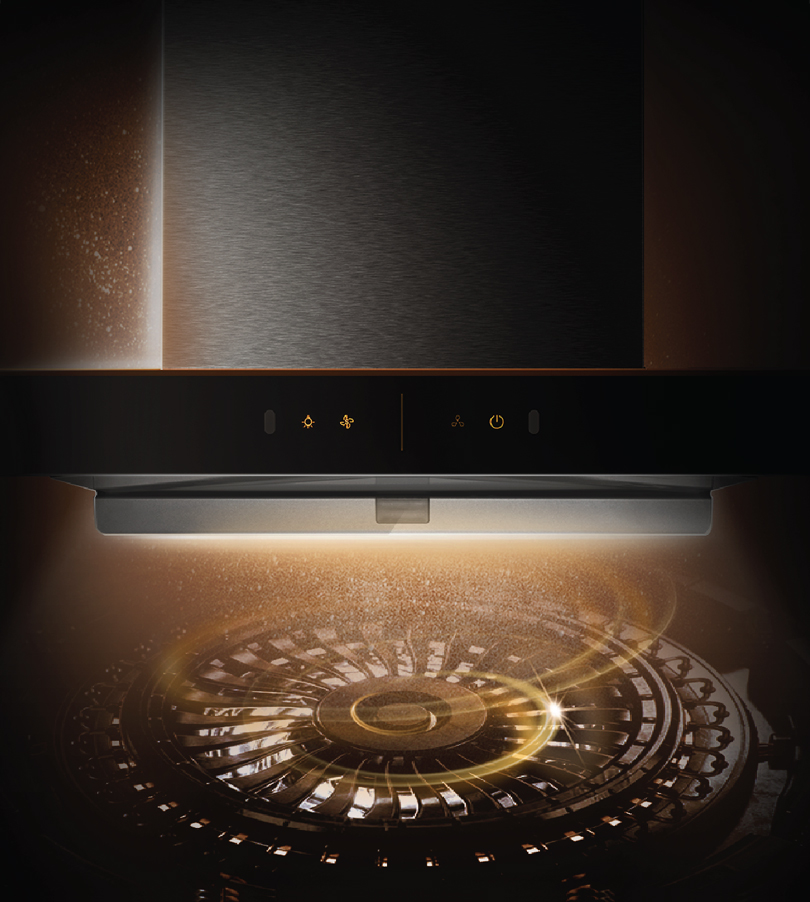

Turbo System

Increase extraction power to 1,500m³/hr , leading grease and smoke out of the kitchen smoothly.

Turbo System

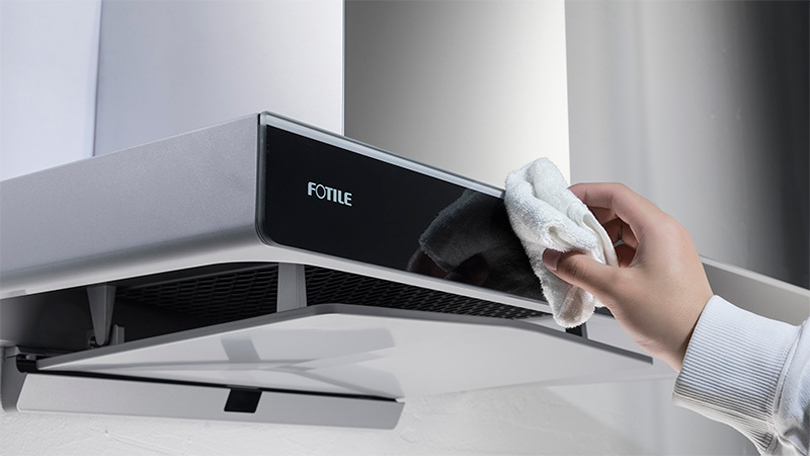

Easy Cleaning

Simply unclasp the 4 buckles to remove suction plate before cleaning. The coated material makes cleaning a breeze

Easy Cleaning

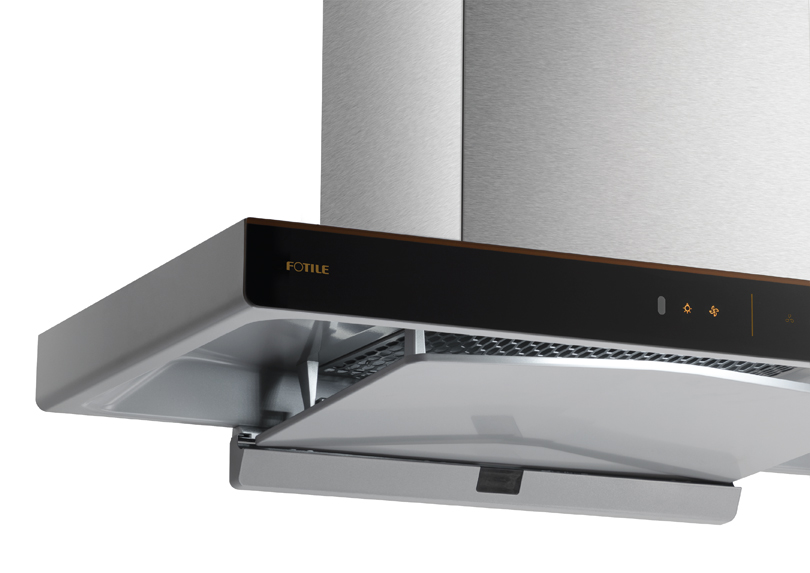

Rounded Edge

Humanized design gives you a better product experience

Rounded Edge
Specifications
Certification
CB, SIRIM
Type of Motor
AC Motor
Material of hood
90cm wide stainless steel with black panel surface design
Unrestrained airflow (m3/hr)
1500
IEC airflow (m3/hr)
1210
Motor Power (W)
270
Max Static Pressure (Pa)
430
Noise Level (dB)
≤55
No. of Speeds Fan Control
3
Illumination Power in LED (W)
2W x 1
Type of hood
Chimney hood
Oil Filtration Rate
92%
Odor Reduction Rate
97%
Automatic Turbo System
NO
Smart Smoke and Sound Detection
NIL
Intelligent Air Management
NIL
Anion Sterilisation
NO
Delay Off Function
YES
Control Mode
Touch + Wave
Type of Filter
Corrugated filter
Special Features
NIL
Power Supply
220V-240V/50-60hZ
Dimension W x D x H (mm)
900 x 515 x (520-940)
IEC
Product Images
