Hood

Product Highlight

Smart Sync

Sync gas hob with range hood. Upon gas hob ignition, range hood automatically turns on to remove cooking smoke.

Smart Sync

Brushless Direct-current Inverter (BLDC)

More Powerful, Better Efficiency - The Brushless Direct Current (BLDC) motor has a maximum static pressure of 1170 Pa that handles long and winding air ducts and complicated installation spaces with ease.

Its maximum air flow of 2300m3/h, at the same time, keeping noise level as low as 40dB.

Brushless Direct-current Inverter (BLDC)

Closer Extraction From Cooking Smoke

Closer Extraction - Only 560mm from the stove, ZMG9057 captures cooking smoke straight at the source.

Wide Suction Plate - Its 900mm-wide suction plate intercepts cooking smoke and extracts it before it spreads.

Closer Extraction From Cooking Smoke

Cooking Smoke Highway

Nautilus Air Passageway reduces wind resistance and noise. With the 3-point Extraction System, cooking smoke is collected, extracted, and removed in a single uninterrupted path.

Cooking Smoke Highway

Smart Smotion (Smart + Motion) Detection

Turn the hood on and off with the wave of a hand

Smart Smotion (Smart + Motion) Detection

Elegant Design

Flush-mounted into the cabinet, the control panel seamlessly aligns with the cabinet surface, ensuring a smooth cabinet profile that prevents bumps during cooking.

Elegant Design

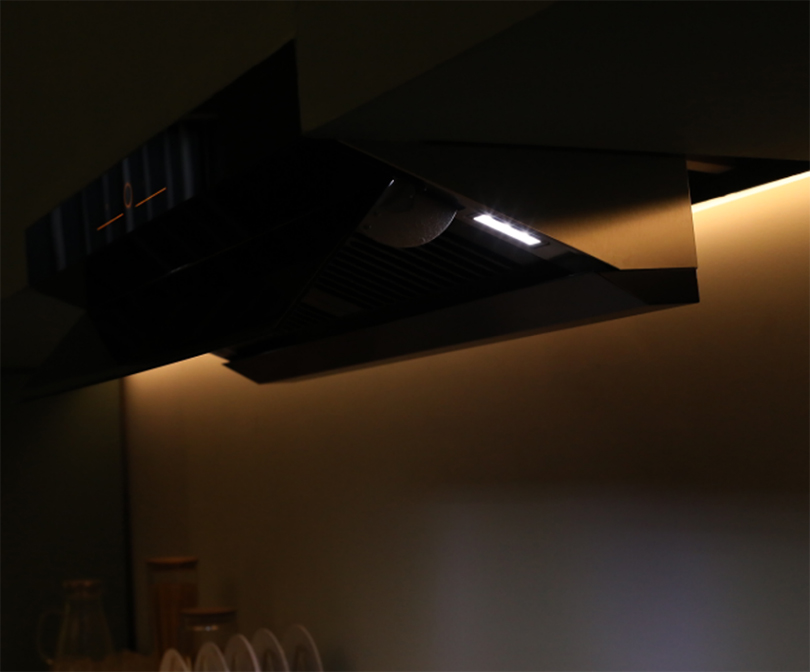

Intelligent Light Sensor

When you turn the hood on, the range hood will judge whether the LED lamp needs to be turned on according to the brightness of the surrounding environment.

Intelligent Light Sensor

Intelligent Suction and Extraction System

Intelligent Air Management

Automatically detects harmful gases in the air before ventilating and purifying the air to keep your kitchen fresh, even when you are not cooking or in the kitchen.

ntelligent Air Management

Auto Turbo System

Increases extraction power automatically when resistance is detected.

Auto Turbo System

Easy To Clean

Dual Removeable Grille Filter

It can be easily placed in the sink for cleaning, making maintenance simple and convenient.

Large Oil Cup

Reduces washing frequency.

Auto Turbo System

Low Noise Level

With the Noise + Vibration + Harshness (NVH) system, it can reduce noise level to as low as 40dB.

Low Noise Level
Specifications
Certification
CB, SIRIM
Type of Motor
Brushless DC Inverter Motor
Material of hood
Black Tempered Glass Surface
Unrestrained airflow (m3/hr)
2300
IEC airflow (m3/hr)
1510
Motor Power (W)
358
Max Static Pressure (Pa)
1170
Noise Level (dB)
40
No. of Speeds Fan Control
3
Illumination Power in LED (W)
1.5 W x 2
Type of hood
Chimney hood
Oil Filtration Rate
92%
Odor Reduction Rate
97%
Automatic Turbo System
YES
Smart Smoke and Sound Detection
NIL
Intelligent Air Management
YES
Anion Sterilisation
NIL
Delay Off Function
YES
Control Mode
Touch + Wave
Type of Filter
Dual removeable grill filter
Special Features
Intelligent light sensor
Power Supply
220V/50hZ
Dimension W x D x H (mm)
897 x 375 x 740
IEC
Product Images
  • pdtimg73.jpg
  • pdtimg74.jpg
