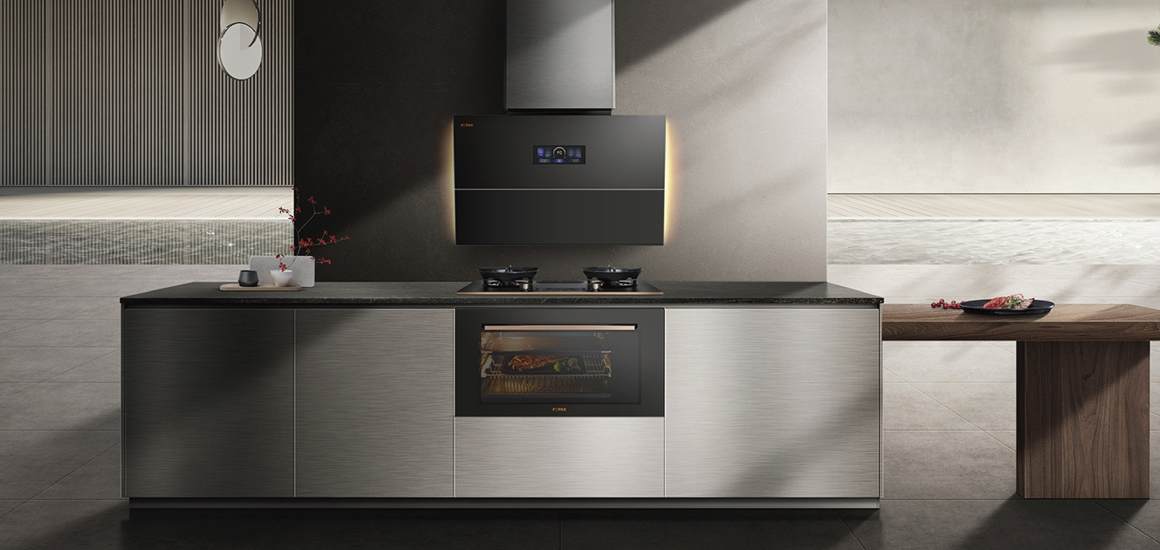

FOTILE Kitchen Appliances Malaysia | Gas Hob | Combi Oven | HZK60-X20

Luna Series
Cooking Range


Product Highlight

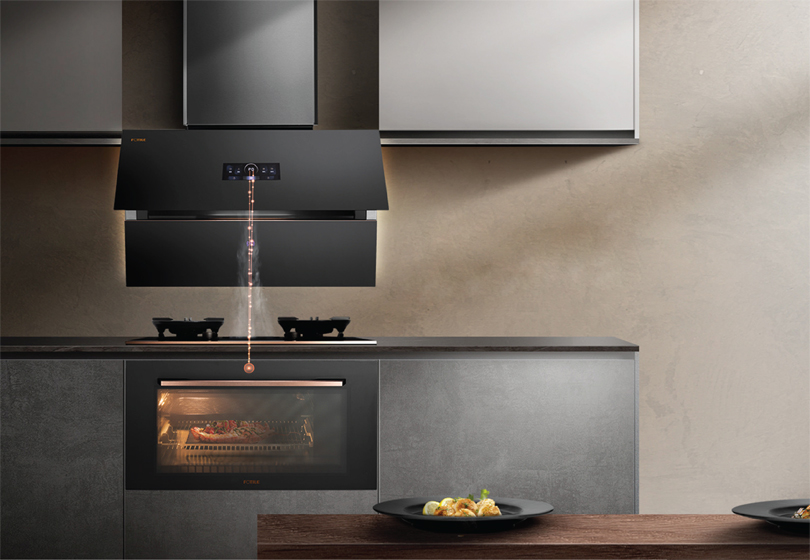

Smart Sync

Sync cooking range with range hood. Upon gas hob or oven activation, range hood automatically turns on to remove cooking smoke.

Smart Sync

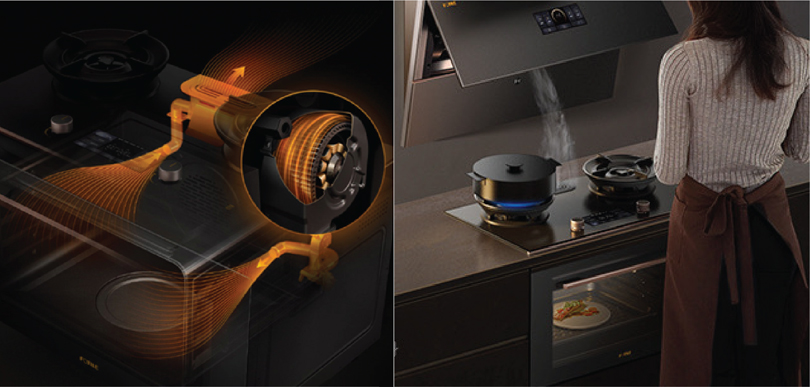

Ventilation Diversion

The vent boost system redirects oven smoke directly to the range hood, eliminating smoke from reaching user's face and enhances kitchen comfort.

Ventilation Diversion

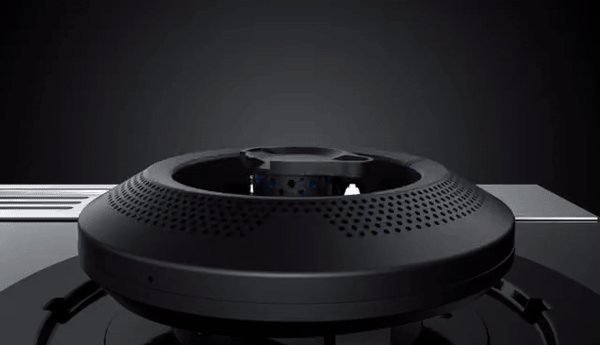

High Flame Power

From lowest 0.28kW to a maximum 5.5kW high flame power, FOTILE cooking range provides a stable flame with efficient heating, achieving more than 70% heating efficiency. This allows for fast cooking while minimizing gas consumption, delivering an optimum level of flame for your cooking needs.

High Flame Power

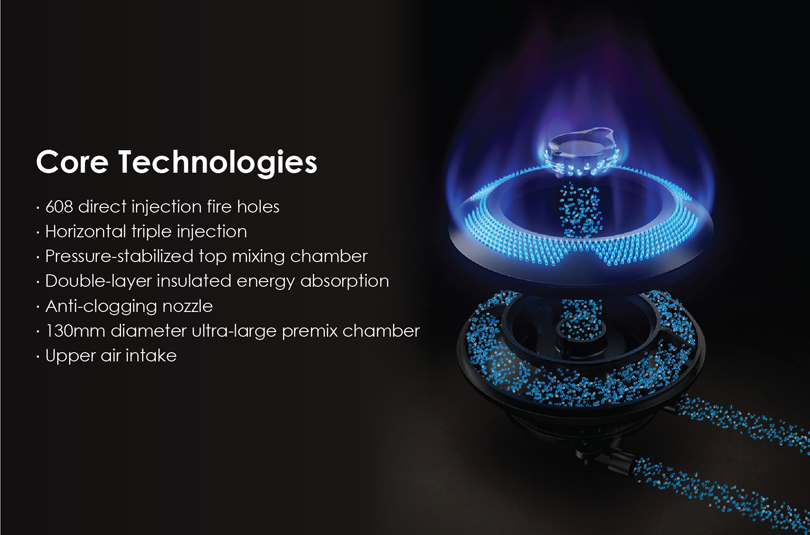

Core Technology

Supported by these core technologies

Core Technology

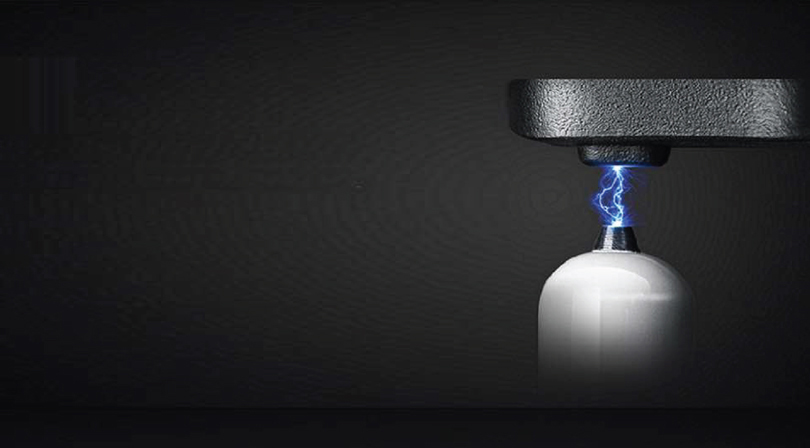

Instant Ignition

0-second ignition with fast ignition feature.

Instant Ignition

Steam-Bake Smart Combo

Steam and bake function at the same time. Users can bake and steam food without being limited by sequential process.

Steam-Bake Smart Combo

Steam Function

Powerful steam generator 2550W with 220mm large heating area for quick heating. 3 steaming modes, powerful steam generates in 45 seconds.

Steam Function

Bake Function

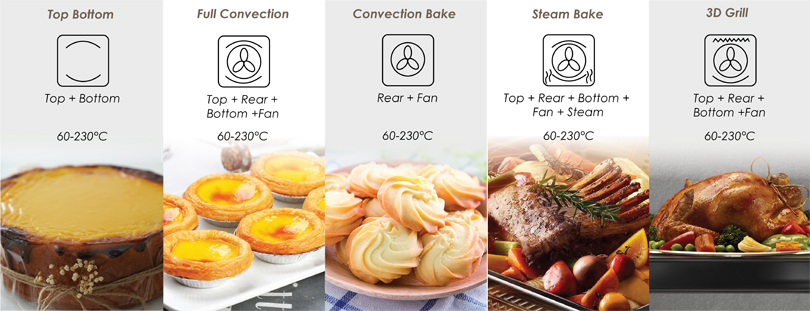

5 Baking Modes

5 Baking Modes

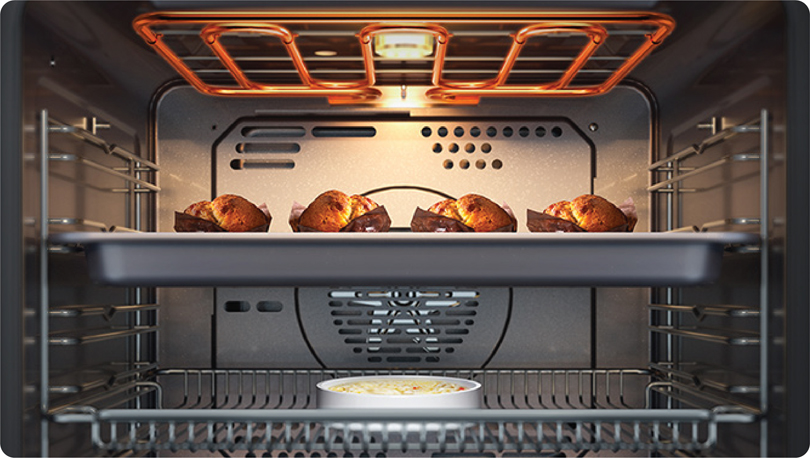

Steam-bake - 3 humidity levels to choose in Steam-Bake function – Low, Medium & High Humidity. You can now determine the amount of steam when using steam-bake mode.

Steam Bake

Uniform temperature with high speed fan 1900rpm and 3D heating.

Uniform temperature

Healthy Cooking Function

Healthy steam and bake

High temperature steam or bake to remove excessive fat of your food, making your food healthier.

Healthy steam and bake

Air Fry Function

Oil free cooking with fat removal rate up to 98.6%. Auto Humidity System with high speed hot air rotation - 1050rpm (top fan) + 1900rpm (back fan) to remove excessive fat of your food, making your food crispier.

Healthy Cooking Function

Dehydrate Function

Prevents oxidation of food. Auto Humidity System with high speed hot air rotation - 1050rpm (top fan) + 1900rpm (back fan) to take away moisture of food quickly.

Dehydrate Function

More Supporting Functions

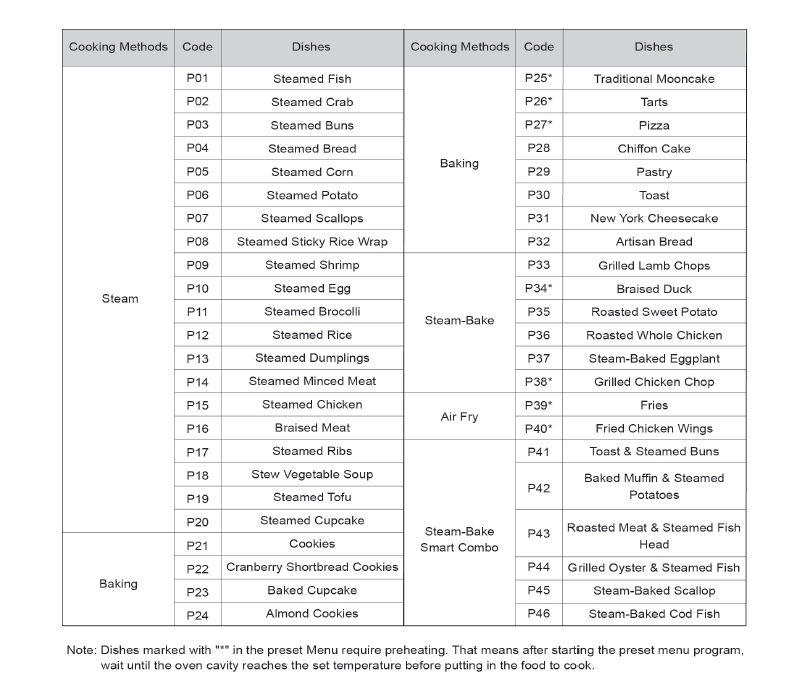

46 Preset Menu

46 preset menu to cater all your cooking needs.

46 Preset Menu

Defrost Function

Rapid thawing of frozen food

Defrost Function

Keep warm Function

Keeping your food warm so that it is ready to serve all the time

Keep warm Function

Proof / Fermentation Function

Ferments dough with a shorter time

Fermentation

Elegant & Humanized Design

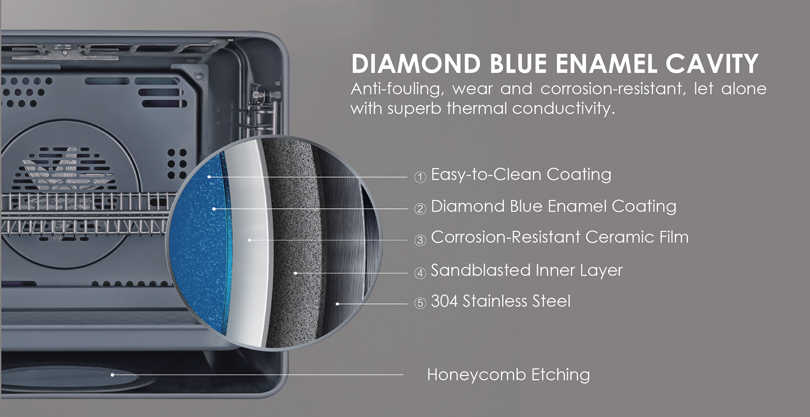

Diamond Blue Enamel Coating

Improved resistance to acid and alkaline, oil resistance, durable and easy to clean.

Diamond Blue Enamel Coating

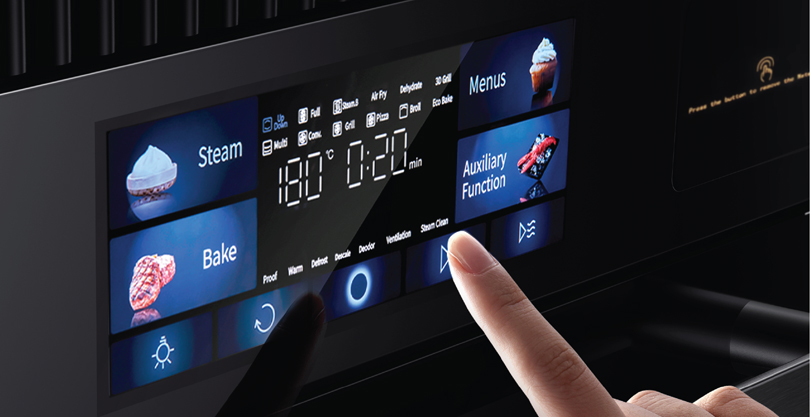

Colour Touch Panel

Colour Touch Panel

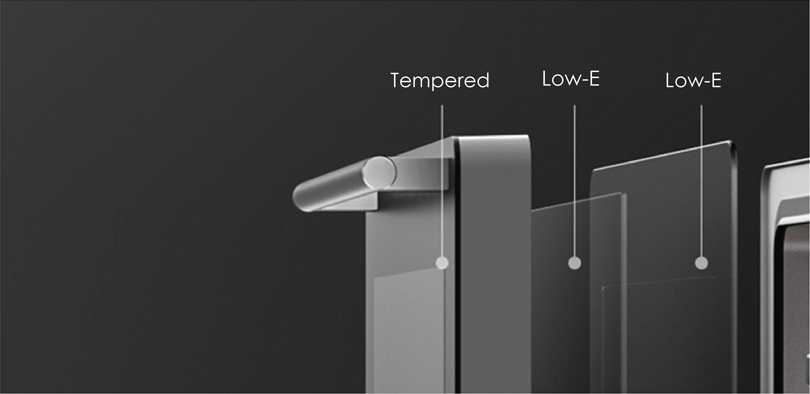

3-Layer Glass

3 layer glass with Low-E keep the door surface safe to touch during operation.

3-Layer Glass

Humanized Function: Easy to Clean

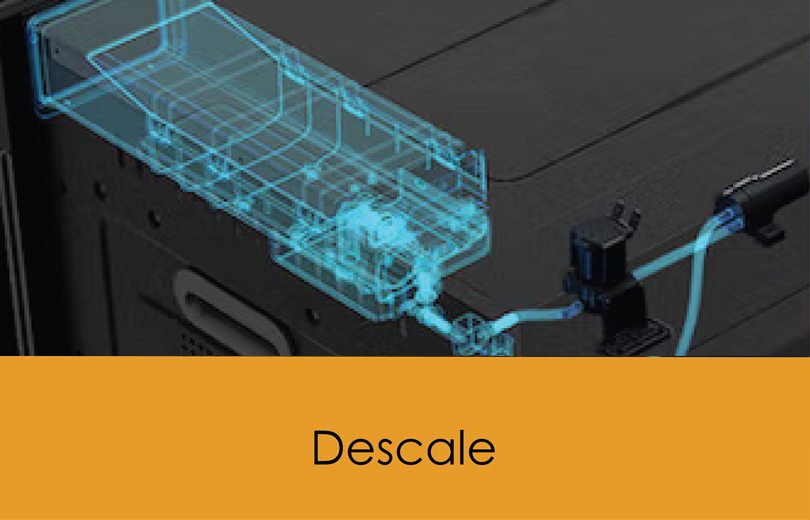

Descaling

Descaling

Deep cleans your oven chamber

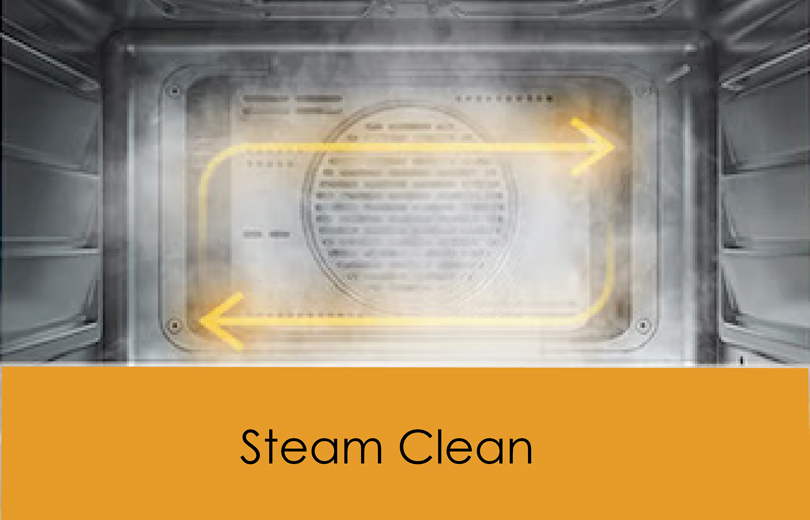

Steam Clean

Steam Clean

Quick and easy cleaning at 100°C.
*Wipe oven chamber before continue other cooking mode.

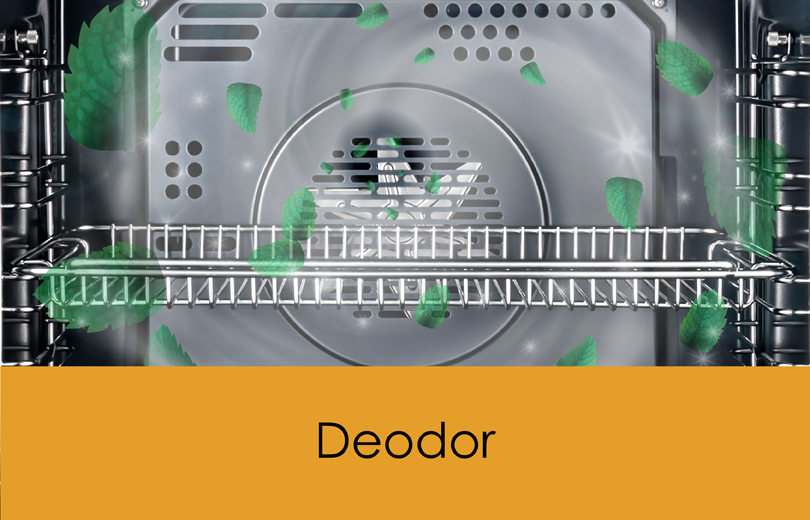

Deodor

Steam Clean

Cavity deodorization

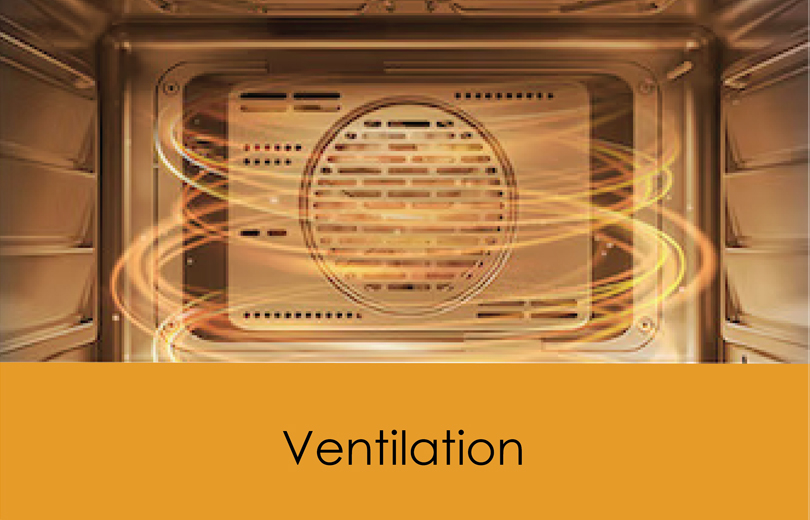

Ventilation

Dry Ventilation

Drying the chamber

Note:
Time and Temp for 4 cleaning functions above are not adjustable

Specifications
Certification
CB, SIRIM

Hob Part

No of Burners
2
Hob Surface material
Tempered glass
Pan Support
Yes
Gas Type
LPG / NG
Heating Load (kW)
L: 5.5 R : 5.5
Heat Efficiency
> 63%
Fast Ignition
Yes
Flame Failure Device (FFD)
Yes
Safety ignition Pin
Yes
Special Features
Smart Sync with range hood
Products Sizes W x D (mm)
800 x 450
Built in sizes W x D (mm)
700 x 400 x 70

Oven Part

Control Mode
Colour panel display
Material
304 Stainless Steel coated with Diamond Blue Enamel cavity
Oven Type
Built-in
Capacity (L)
60
Temperature Range (°C)
30-230
Functions
Normal Steam, High Steam, Quick Steam,Proof, Defrost, Top Bottom, Full Convection, Convection Bake, Steam Bake, 3D Grill, Healthy Steam, Healthy Bake, Air Fry, Dehydrate, Warm, Ventilation, Steam Clean, Descale, Deodor, Vent Boost
Preset Menu
46
Dynamic Steam Balance System
YES
Water Tank Capacity (L)
1.3
Door Material
2 x Tempered Glass and 1 x Low-E
No. of Door Glasses
3
No. of heating pipe
3
Handle Material
Aluminium Alloy
Accessories
1 x Baking tray, 1 x Steam Bake tray
Rated Voltage (V)
220-240V 50/60Hz
Power (W)
3500
Dimension W x D x H (mm)
795 x 508 x 413
