FOTILE Kitchen Appliances Malaysia | Chimney Hood | AMG9058-Y

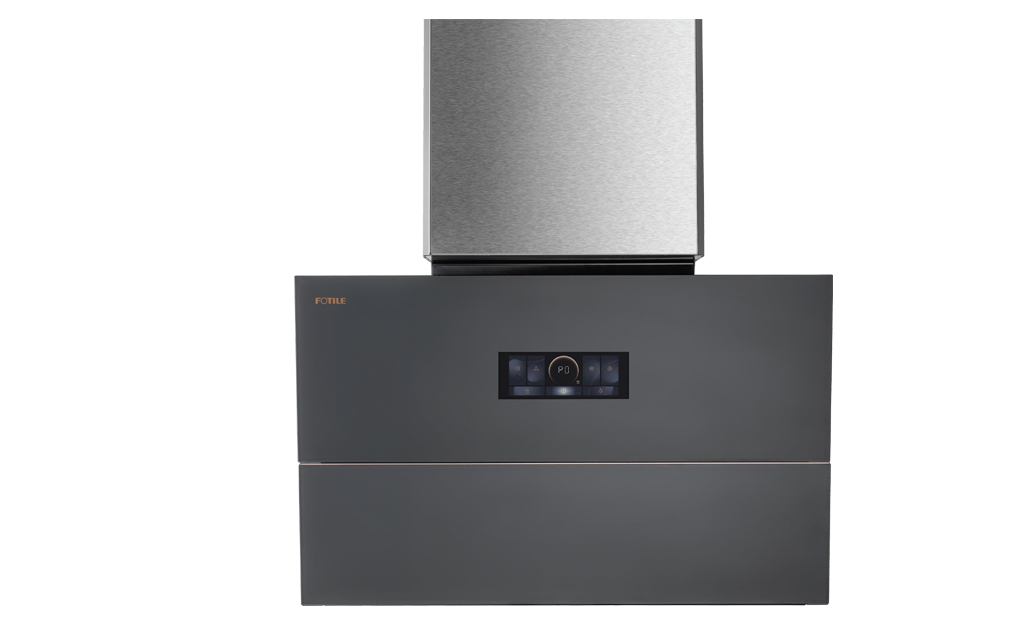

Luna Series
Range Hood


Product Highlight

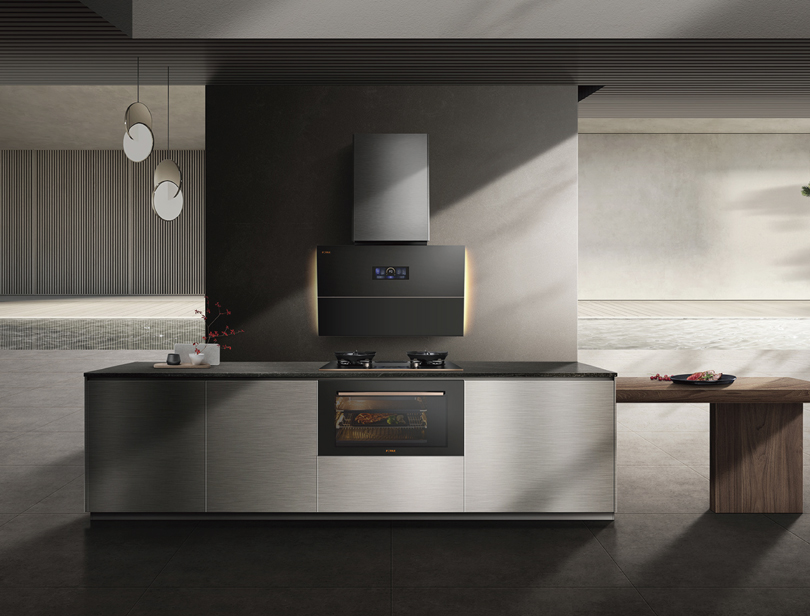

Elegant Design

Matt surface to prevent leaving fingerprints marks, maintaining its elegant appearance with minimal marks upon touch. Soft ambient light gently illuminates the space, complimented by the elegant rose gold bar.

Elegant Design

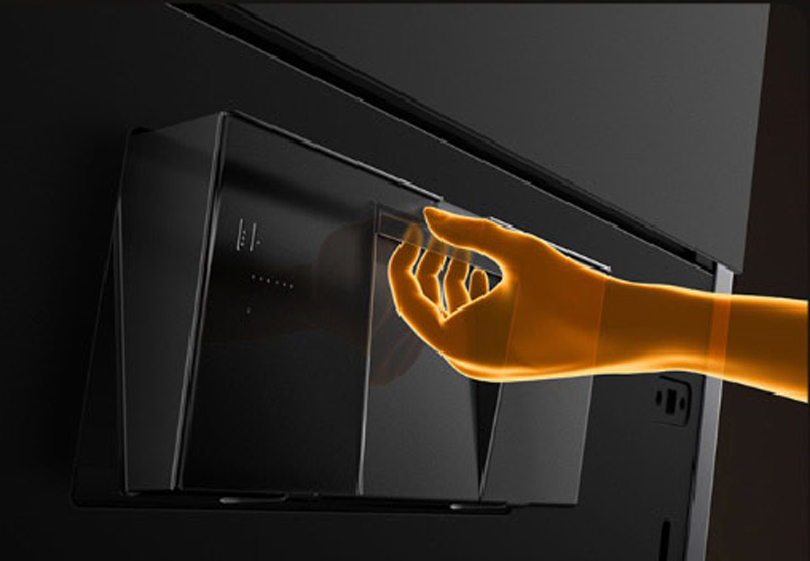

Hidden oil cup - Maintain a sleek and elegant appearance while providing a convenient and discreet solution for collecting cooking smoke, making cleaning easier and enhancing the overall aesthetic of the kitchen.

Hidden oil cup

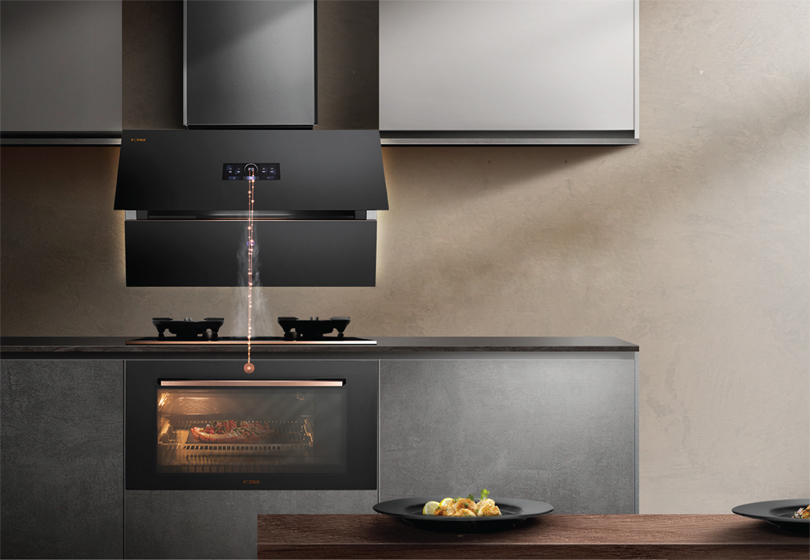

Smart Sync

Sync gas hob with range hood. Upon gas hob ignition, range hood automatically turns on to remove cooking smoke.
*Sync function is only available for models with hood-hob sync.

Smart Sync

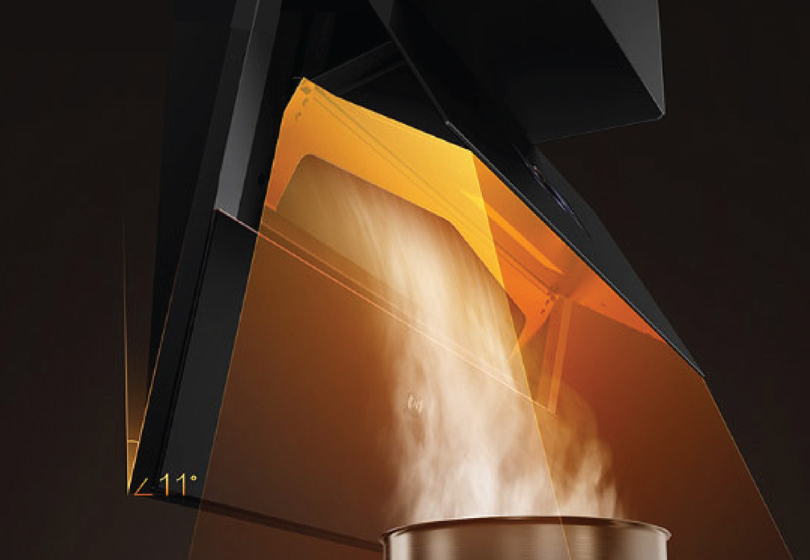

Ultra Thin & Close In

As thin as an LCD screen, situated 45cm from the hob, reinforced by the 11° inclination design, to ensure full smoke extraction.

Ultra Thin & Close In

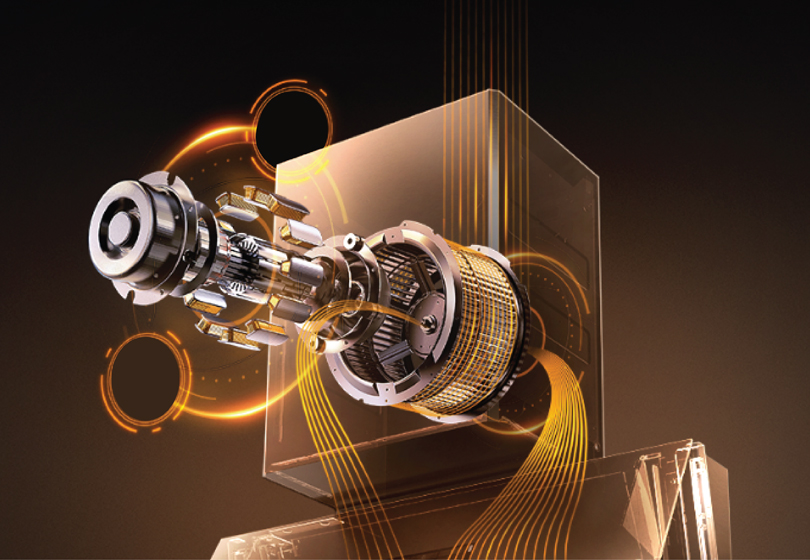

Stronger - Brushless Direct-current Inverter (BLDC)

More Powerful, Better Efficiency - The Brushless Direct Current (BLDC) motor has a maximum static pressure of 1230 Pa that handles long and winding air ducts and complicated installation spaces with ease.

Its maximum air flow of 2600m3/hr keeping noise level as low as 42dB.

Stronger - Brushless Direct-current Inverter (BLDC)

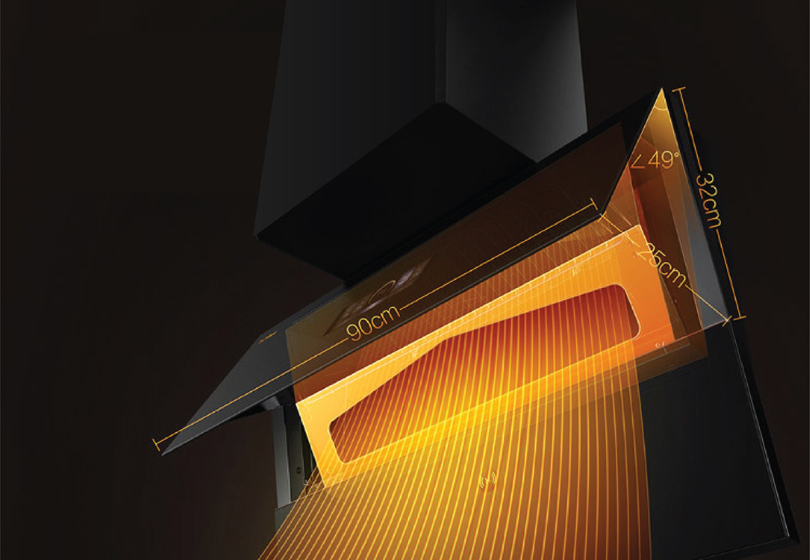

Wider – Wider to Extract Cooking Smoke

Wide Suction Plate - Its 900mm-wide suction plate intercepts cooking smoke and extracts it before it spreads.

Wider – Wider to Extract Cooking Smoke

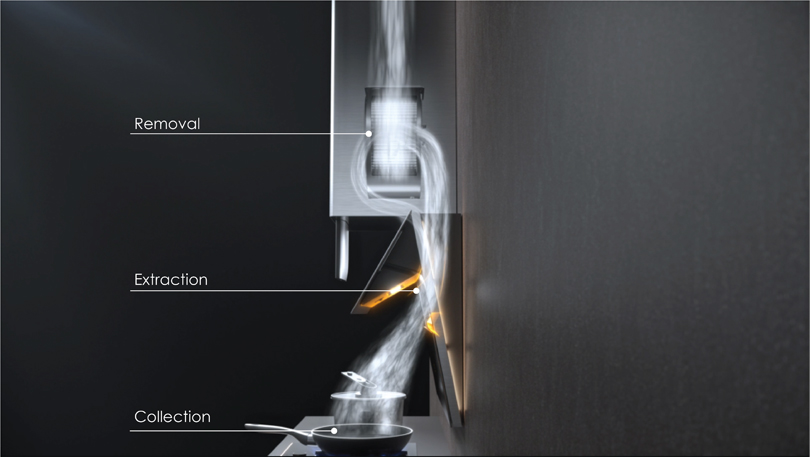

Faster - Cooking Smoke Highway

Rear Extraction Design - The rear extraction design allows the extraction motor to rotate 180°, actively reducing the distance of cooking smoke and extracting it in a straight path.

Nautilus Air Passageway reduces wind resistance and noise. With the 3-point Extraction System, cooking smoke is collected, extracted and removed in a single uninterrupted path.

Faster - Cooking Smoke Highway

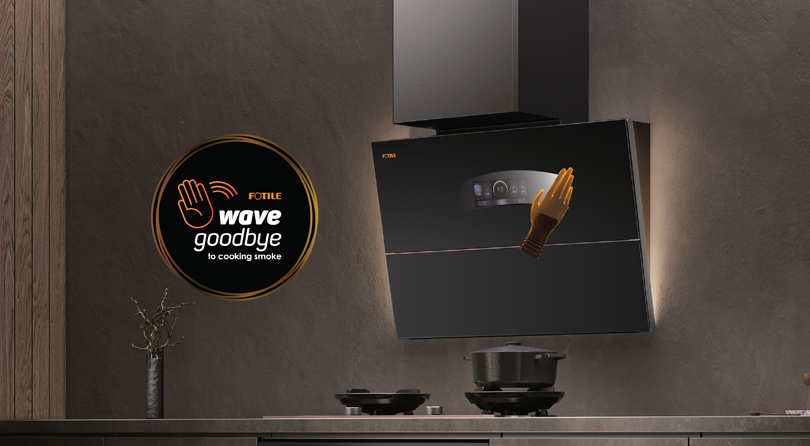

Smart Smotion (Smoke + Motion) Detection

Turn the hood on and off with the wave of a hand.

Smart Smotion (Smoke + Motion) Detection

Low Noise Level

BLDC motor with multiple noise-reduction technologies. Noise level produced is as low as 42dB.

Low Noise Level

Easy To Clean

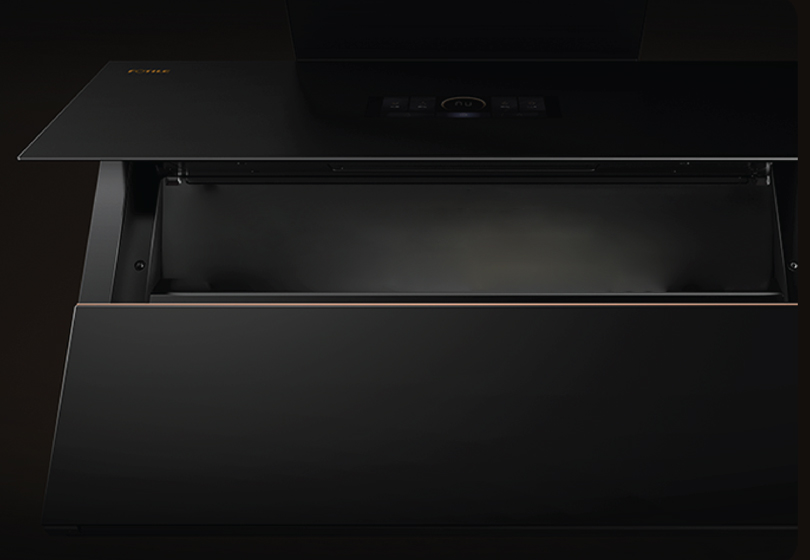

All-new filter-free design with glass frame, just wipe to restore it to its original lustre.

Unbuckle smoke separation plate for easy cleaning. Simplifies maintenance, allowing for effortless access to internal components, ensuring thorough cleaning.

Easy To Clean

Humanized Design

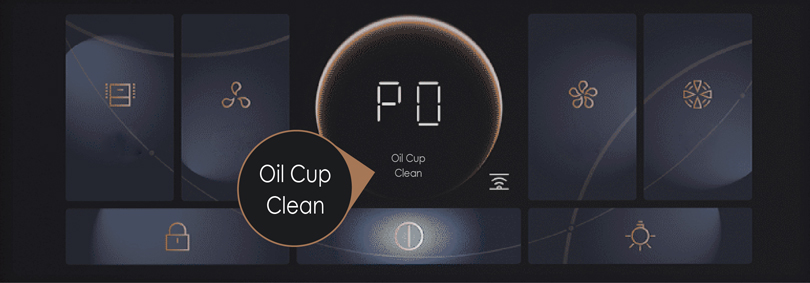

Oil Cup Full Notification. When the hood oil cup is full, a cleaning signal will be displayed, alert user to clean oil cup.

Humanized Design
Specifications
Certification
CB, SIRIM
Type of Motor
Brushless DC Inverter Motor
Material of hood
90cm wide tempered glass surface
Unrestrained airflow (m3/hr)
2600
IEC airflow (m3/hr)
1650
Motor Power (W)
456
Max Static Pressure (Pa)
1230
Noise Level (dB)
49
No. of Speeds Fan Control
2
Illumination Power in LED (W)
1.5W x 2
Type of hood
Chimney hood
Oil Filtration Rate
93.2%
Odor Reduction Rate
97.6%
Automatic Turbo System
YES
Delay Off Function
YES
Control Mode
Touch + Wave
Type of Filter
Filter free
Special Features
Smart sync with gas hob
Power Supply
240V/50hZ
Dimension W x D x H (mm)
895 x 328 x 1120
IEC
