Power. Precision. Perfection – redefined
BIG9059 seamlessly blends into cabinetry with its hidden design, while delivering 2,850m³/h max airflow for powerful ventilation. Featuring a brushless DC inverter motor for efficiency, it operates at a quiet 39dB thanks to the nautilus air passageway. With ultra-close 370mm extraction and a wide suction plate, it captures smoke instantly. The filter-free glass frame ensures easy cleaning – just wipe to restore shine. Enjoy intuitive control: wave to activate or adjust height with a button, plus auto-sync with your gas hob. Power meets elegance, effortlessly.

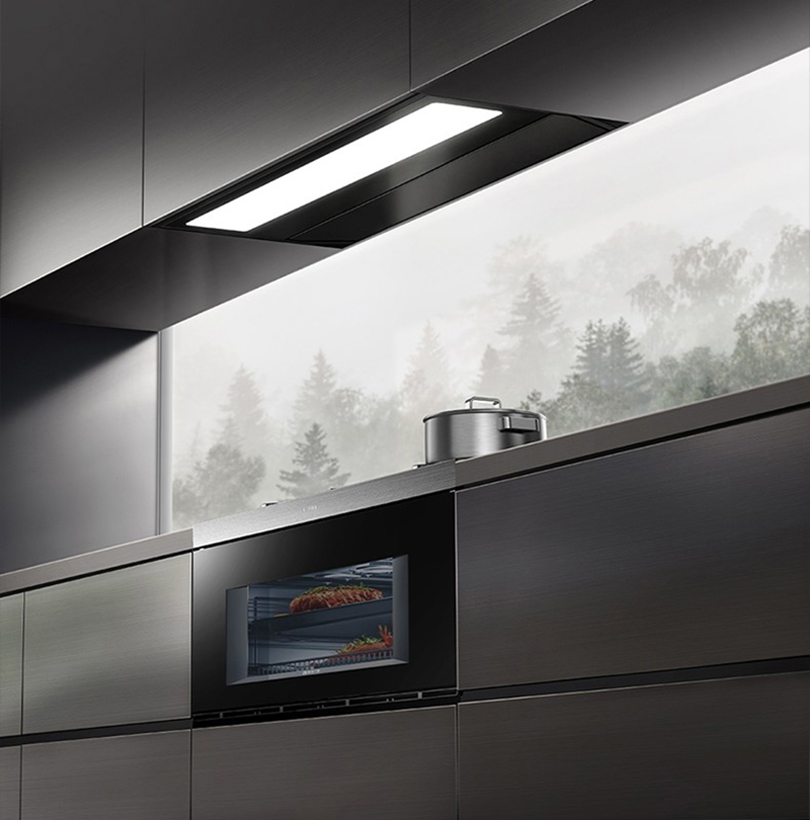

Hidden Hood Design
Flush-mounted into the cabinet, the range hood seamlessly integrates with the cabinet, enhancing the overall aesthetic of the kitchen.

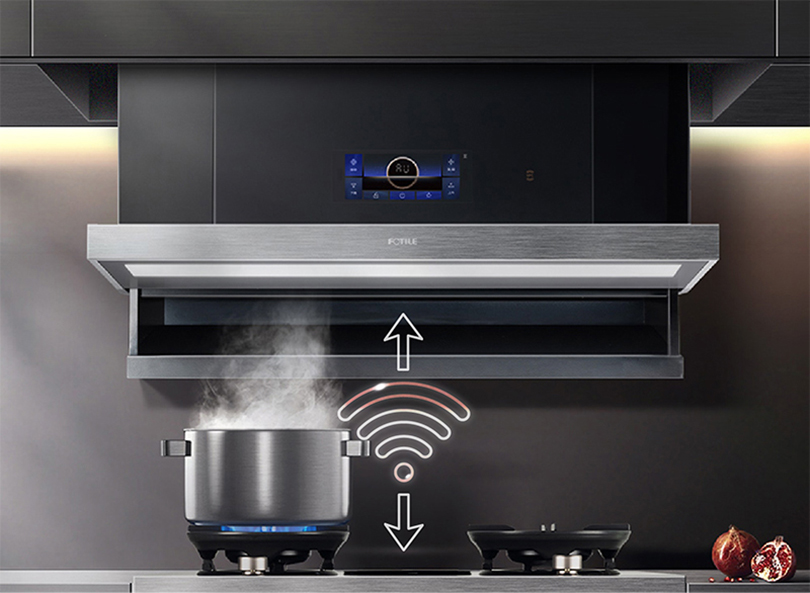

Smart Sync
Sync gas hob with range hood. Upon gas hob ignition, range hood automatically turns on to remove cooking smoke.

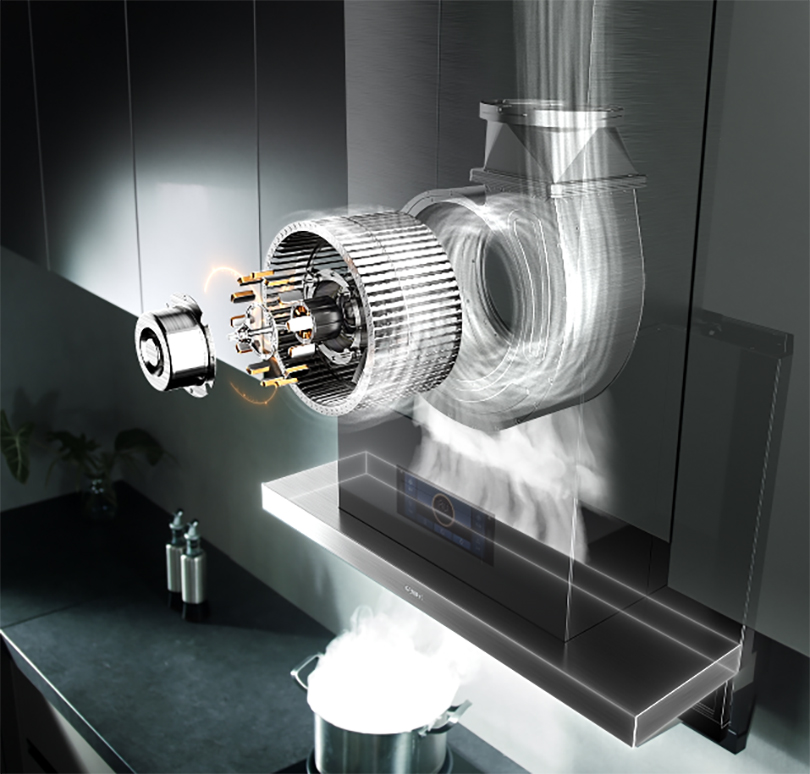

Brushless Direct-current Inverter (BLDC)
More Powerful, Better Efficiency – The Brushless Direct Current (BLDC) motor has a maximum static pressure of 1240 Pa that handles long and winding air ducts and complicated installation spaces with ease.
Its maximum air flow of 2850m3/h, at the same time, keeping noise level as low as 39dB.

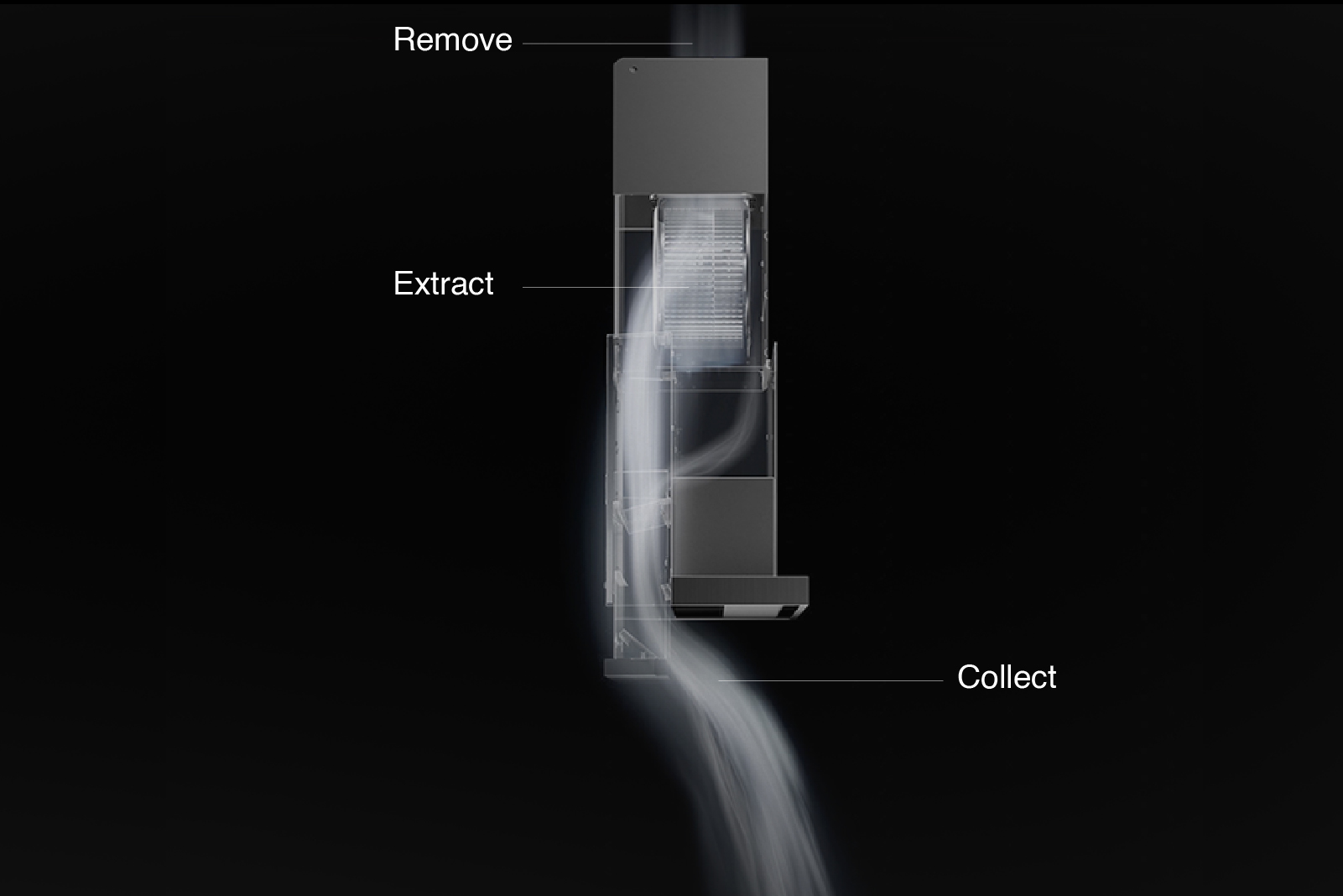

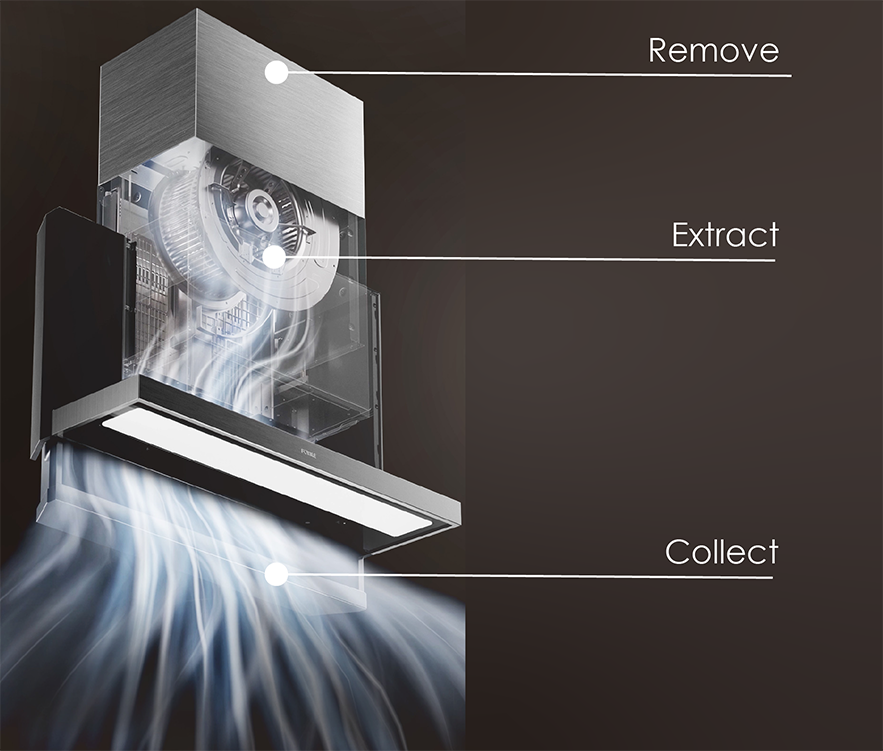

Cooking Smoke Highway
Nautilus Air Passageway reduces wind resistance and noise. With the 3-point Extraction System, cooking smoke is collected, extracted, and removed in a single uninterrupted path.

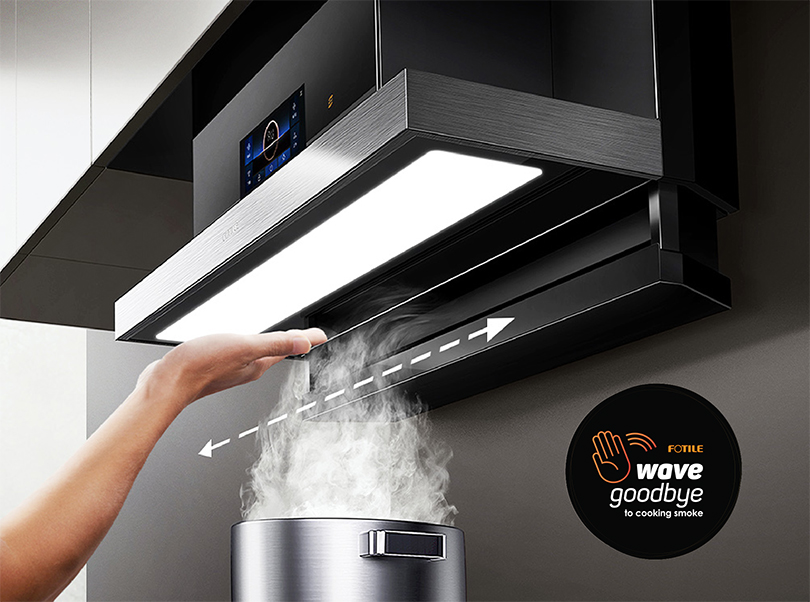

Smart Smotion (Smoke + Motion) Detection
Turn the hood on and off with the wave of a hand.

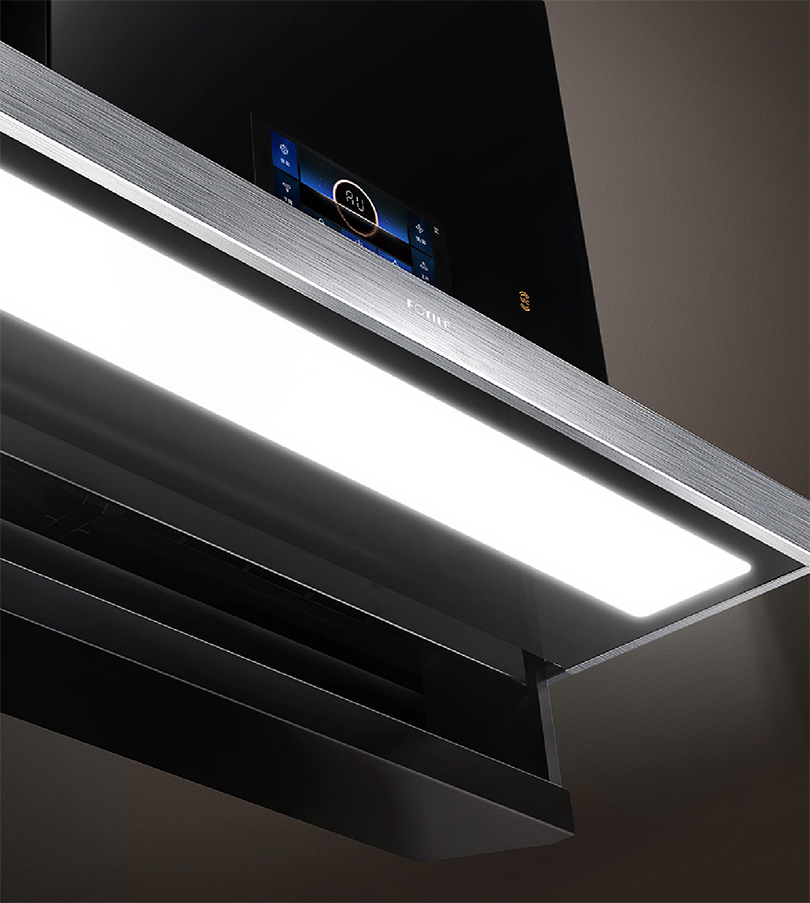

Easy To Clean
All-new filter-free with glass frame, just wipe to restore it to its original lustre.

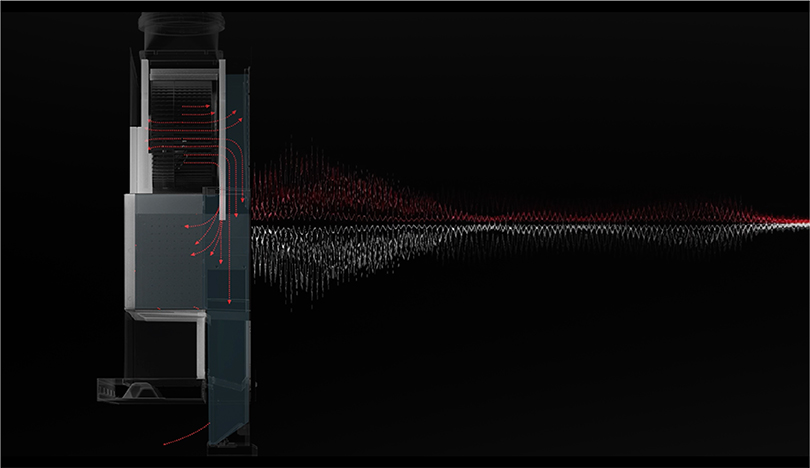

NVH Technology – Low Noise Level
With the Noise + Vibration + Harshness (NVH) technology, it can reduce noise level to as low as 39dB.
Intelligent Elevation Adjustment
Effortlessly adjust the height with a simple wave or by pressing a button. This feature not only caters to each individual’s preferred cooking height, but it also accommodates various cooking vessels, whether you’re using a frying pan or a steamer.
| Certification | CB, SIRIM |
| Type of Motor | Brushless DC Inverter Motor |
| Material of hood | 90cm wide tempered glass surface |
| Unrestrained airflow (m3/hr) | 2850 |
| IEC airflow (m3/hr) | 1540 |
| Motor Power (W) | 450 |
| Max Static Pressure (Pa) | 1240 |
| Noise Level (dB) | 39 |
| No. of Speeds Fan Control | 2 |
| Illumination Power in LED (W) | 10 |
| Type of hood | Chimney hood |
| Oil Filtration Rate | 92% |
| Odor Reduction Rate | 97% |
| Automatic Turbo System | YES |
| Smart Smoke and Sound Detection | NIL |
| Intelligent Air Management | NIL |
| Anion Sterilisation | NIL |
| Delay Off Function | YES |
| Control Mode | Touch + Wave |
| Type of Filter | Filter free |
| Special Features | Smart sync with gas ho Hidden Hood Design Intelligent Elevation Adjustment. |
| Power Supply | 220~240V/50hZ |
| Dimension W x D x H (mm) | 892 x 370 x 690 |
