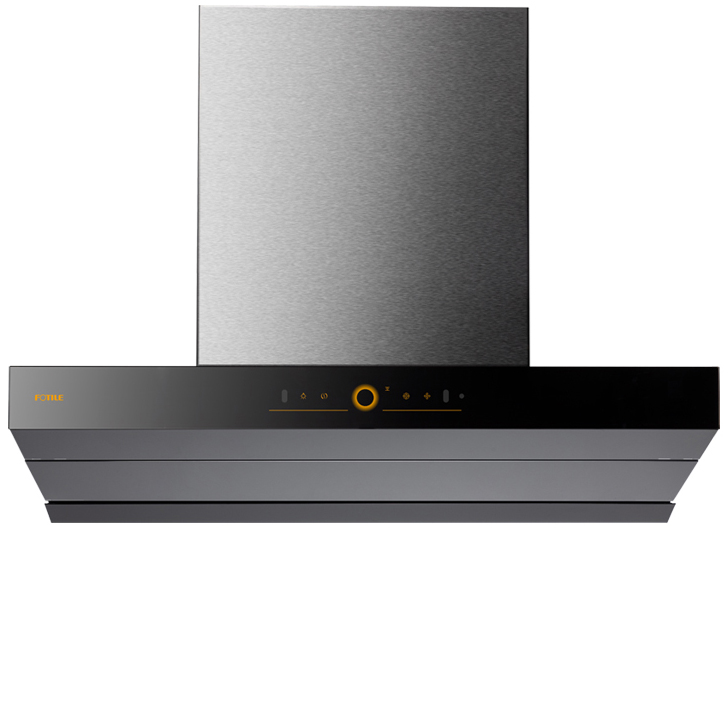

Smart, Compact & Versatile Hood
This advanced range hood features a broad air inlet and set the capture fume height at the golden collection zone for maximum efficiency. Its compact design prevents head bumps while maintaining 4 flexible installation options and clear cooking visibility.
Powered by a BLDC motor and multi-directional back-suction airflow boost, it delivers strong yet quiet performance. The intelligent air management system automatically optimizes your kitchen air quality.
Smart Sync
Sync gas hob with range hood. Upon gas hob ignition, range hood automatically turns on to remove cooking smoke.
Brushless Direct-current Inverter (BLDC)
More Powerful, Better Efficiency – The Brushless Direct Current (BLDC) motor has a maximum static pressure of 1170 Pa that handles long and winding air ducts and complicated installation spaces with ease.
Its maximum air flow of 2300m3/h, at the same time, keeping noise level as low as 40dB.
Closer Extraction From Cooking Smoke
Closer Extraction – Only 560mm from the stove, ZMG9057 captures cooking smoke straight at the source.
Wide Suction Plate – Its 900mm-wide suction plate intercepts cooking smoke and extracts it before it spreads.
Cooking Smoke Highway
Nautilus Air Passageway reduces wind resistance and noise. With the 3-point Extraction System, cooking smoke is collected, extracted, and removed in a single uninterrupted path.
Smart Smotion (Smart + Motion) Detection
Turn the hood on and off with the wave of a hand
Elegant Design
Flush-mounted into the cabinet, the control panel seamlessly aligns with the cabinet surface, ensuring a smooth cabinet profile that prevents bumps during cooking.

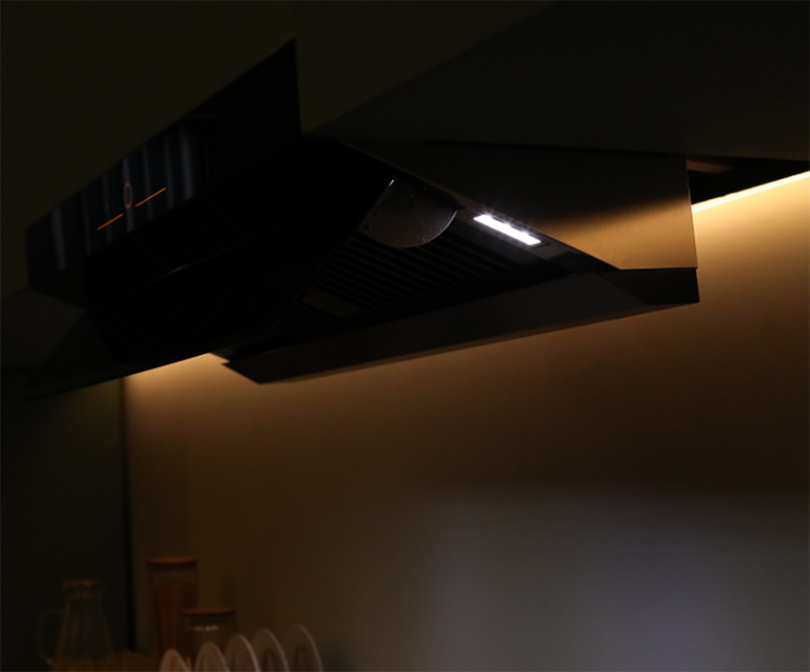

Intelligent Light Sensor
When you turn the hood on, the range hood will judge whether the LED lamp needs to be turned on according to the brightness of the surrounding environment.
Intelligent Suction and Extraction System
Intelligent Air Management
Automatically detects harmful gases in the air before ventilating and purifying the air to keep your kitchen fresh, even when you are not cooking or in the kitchen.
Intelligent Suction and Extraction System
Auto Turbo System
Increases extraction power automatically when resistance is detected.
Easy To Clean
Dual Removeable Grille Filter
It can be easily placed in the sink for cleaning, making maintenance simple and convenient.
Large Oil Cup
Reduces washing frequency.
Low Noise Level
With the Noise + Vibration + Harshness (NVH) system, it can reduce noise level to as low as 40dB.
| Certification | CB, SIRIM |
| Type of Motor | Brushless DC Inverter Motor |
| Material of hood | 90cm wide tempered glass surface |
| Unrestrained airflow (m3/hr) | 2300 |
| IEC airflow (m3/hr) | 1510 |
| Motor Power (W) | 358 |
| Max Static Pressure (Pa) | 1170 |
| Noise Level (dB) | 40 |
| No. of Speeds Fan Control | 3 |
| Illumination Power in LED (W) | 1.5W x 2 |
| Type of hood | Chimney hood |
| Oil Filtration Rate | 92% |
| Odor Reduction Rate | 97% |
| Automatic Turbo System | YES |
| Smart Smoke and Sound Detection | NIL |
| Intelligent Air Management | YES |
| Anion Sterilisation | NIL |
| Delay Off Function | YES |
| Control Mode | Touch + Wave |
| Type of Filter | Dual removeable grill filter |
| Special Features | Intelligent light sensor |
| Power Supply | 240V/50hZ |
| Dimension W x D x H (mm) | 897 x 375 x 740 |
