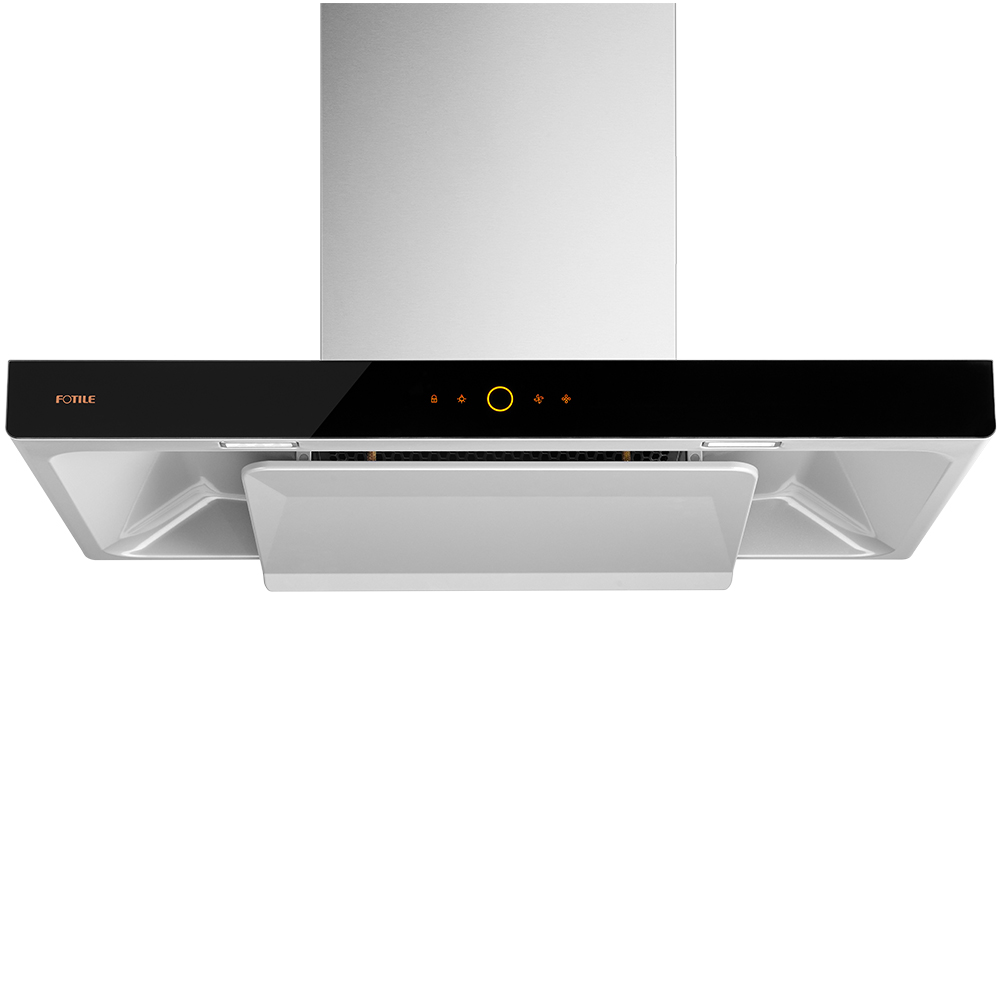

Recirculation Hood with Clean-Air Tech
Introducing our recirculation hood, equipped with a high-efficiency BLDC motor, it ensures powerful yet quiet operation while saving energy. It efficiently purifies air without requiring external ducting, making it ideal for any kitchen layout. The 100s turbo system delivers instant and robust suction, eliminating smoke and grease in seconds. With an exceptional 96% oil filtration rate and 99% smell reduction, it keeps your kitchen clean after cooking. The patented wing-like surround suction plate maximizes airflow coverage, while clean-air tech enhances filtration efficiency for fresher air.
Double Power System
BLDC Motor
Powerful upgrade that further enhances the smoke extraction capability unrestrained airflow 1,400 m3/h, increase air pressure up to 850Pa
Double Power System

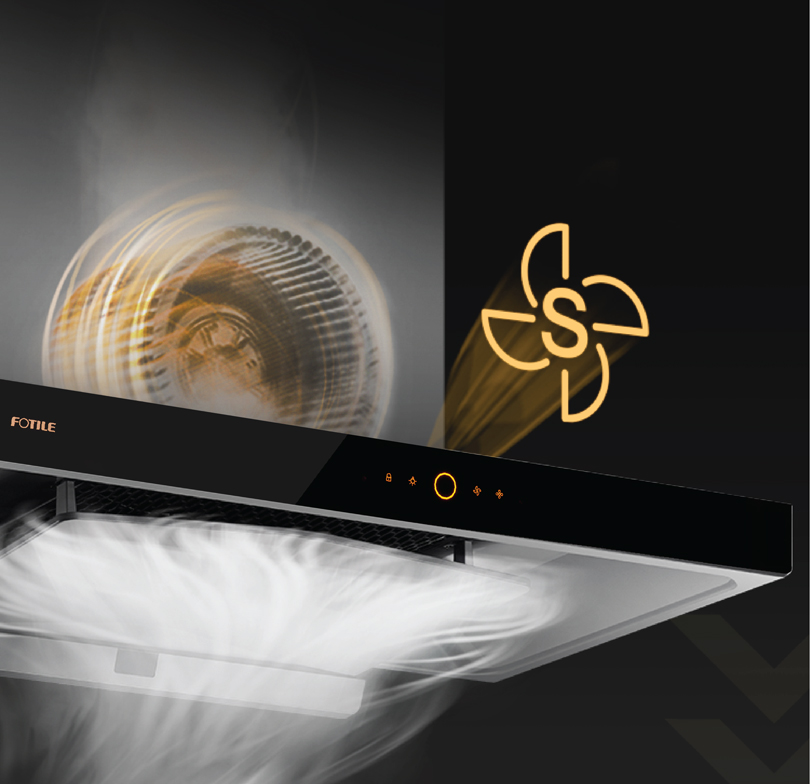

Turbo System
Increase extraction power for 100 seconds, leading grease and smoke out of the kitchen smoothly.
Smart Smotion (Smoke + Motion) Detection

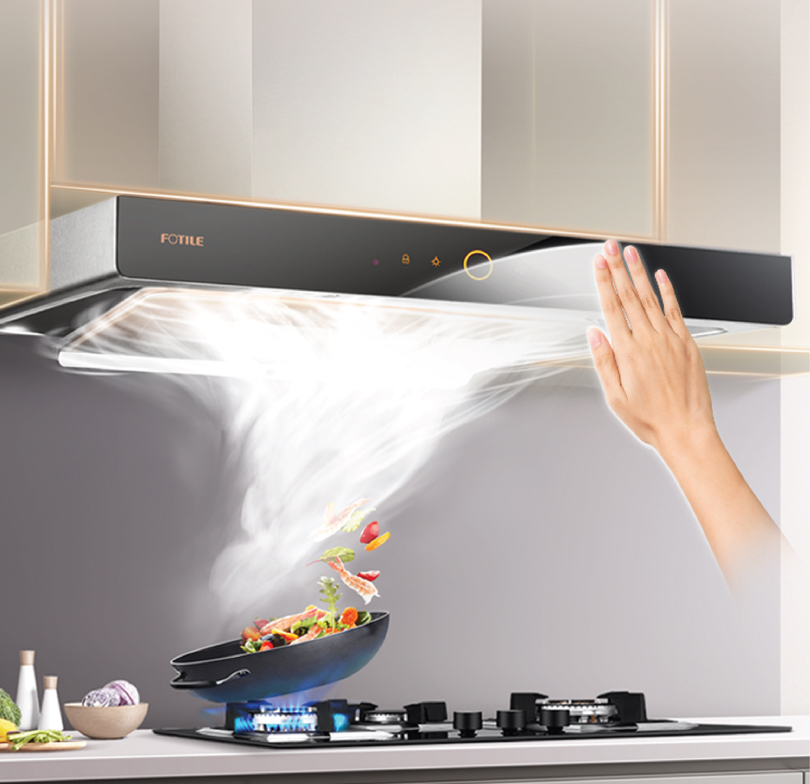

Hand wave control
Wave to switch on or switch off the hood (turbo and light)

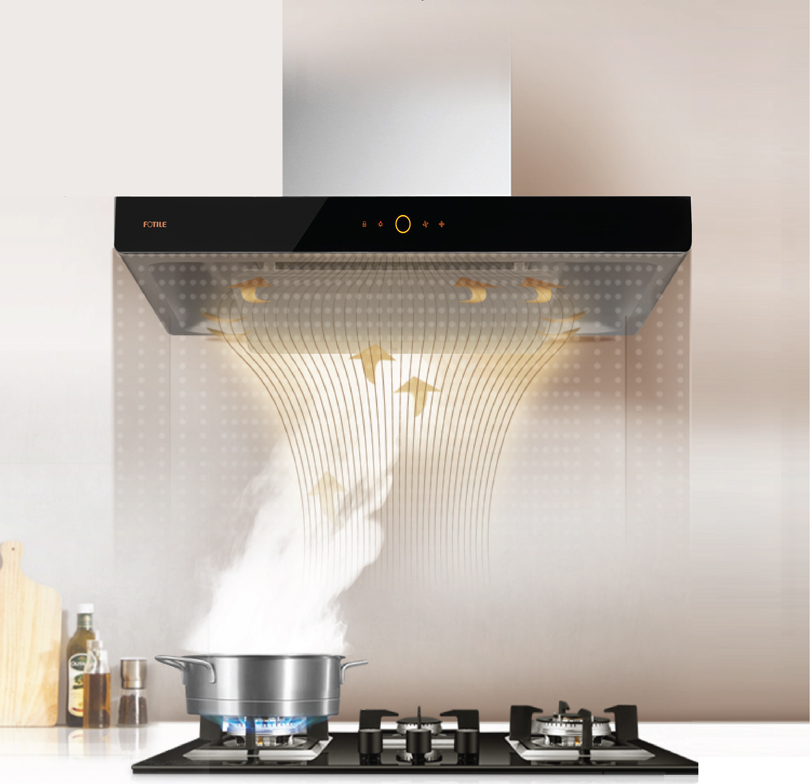

Patented Wing-like Surround Suction Plate
Wing-liked surround suction plate act as a barrier between wok and filter, ensure no oil dripping compare to normal aluminum grease filter. It is effective in capturing cooking smoke

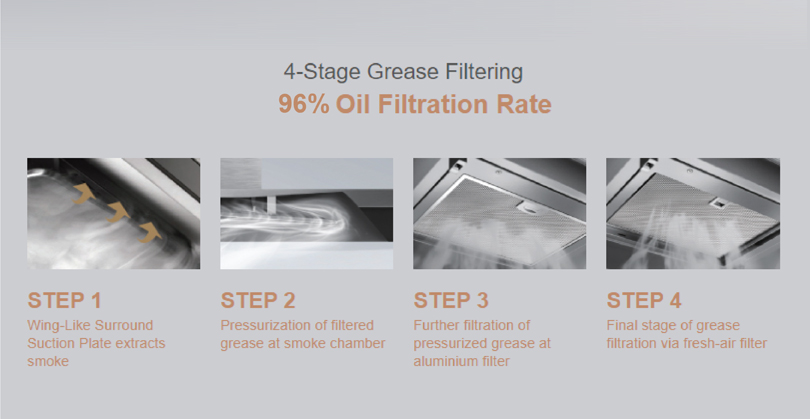

Effective Oil Filtration Rate

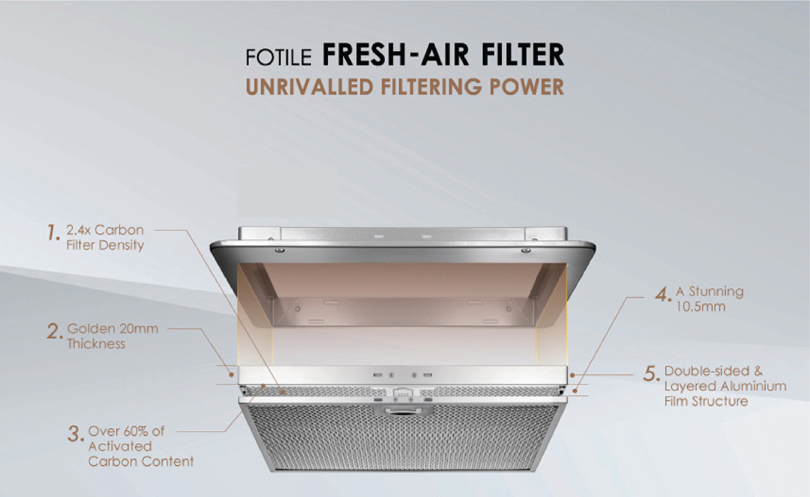

Effective Aluminium & Carbon Filter
High Efficiency Filter technology is a must in any recirculation hood to maintain a clean and fresh kitchen, otherwise greasy fumes will linger no matter how great the hood’s suction power is. Normal recirculation hoods are unable to filter cooking smoke completely, as they tend to drift back to the kitchen via the hood’s outlet.

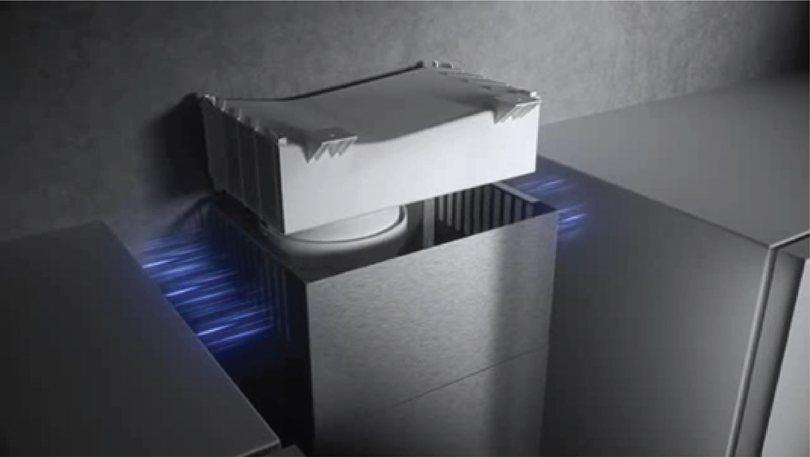

‘Shark Fin’ Air Guide
114° angle ‘shark fin’ air guide to redirect the air flow so that turbulence generated from direct rebounding of an unguided airflow can be avoided.
Humanized Design

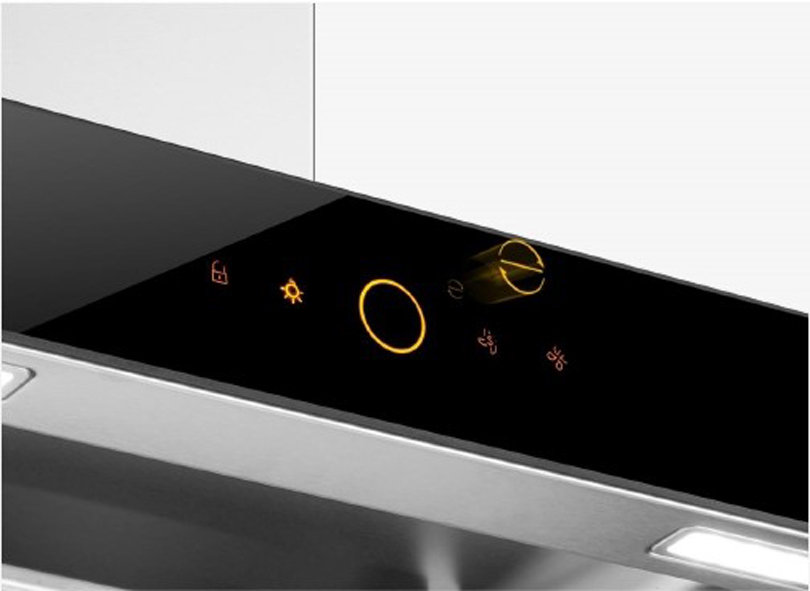

Filter Replacement Notification
When the hood has operated up to 150-450* hours, a cleaning signal will be displayed, alert user to change the carbon filter.
*Turbo / High speed – 150 hours, Lowest speed – 450 hours

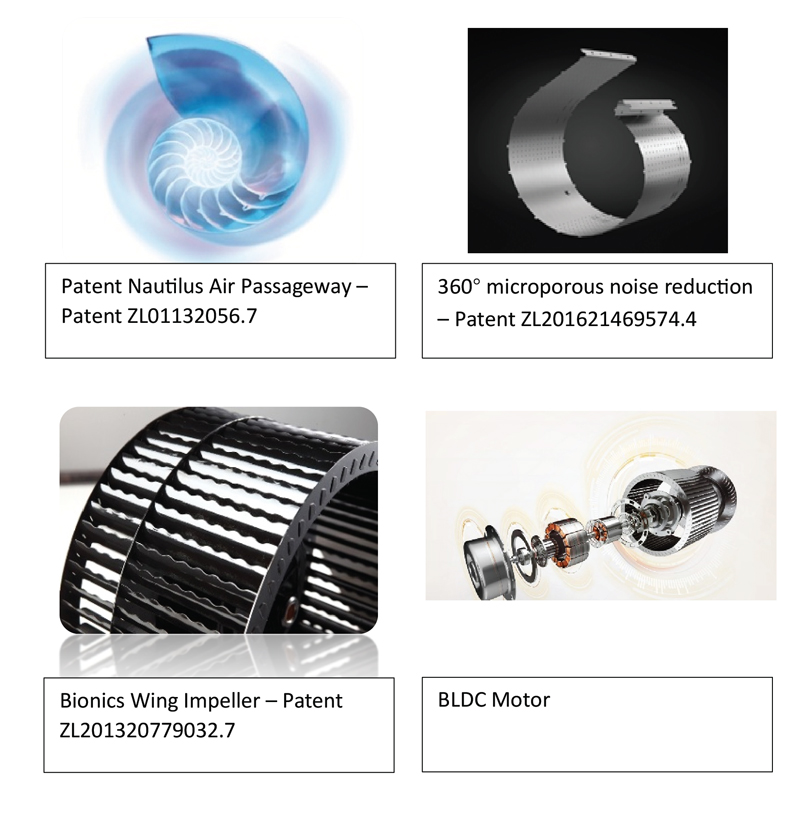

Quiet Operation
Multiple noise-reduction technologies make you cook at peace. Noise level produced is as low as 41dB
| Certification | CB, SIRIM |
| Type of Motor | Brushless DC Inverter Motor |
| Material of hood | 90cm wide stainless steel with black panel surface design |
| Unrestrained airflow (m3/hr) | 1400 |
| IEC airflow (m3/hr) | 920 |
| Motor Power (W) | 294 |
| Max Static Pressure (Pa) | 850 |
| Noise Level (dB) | 53 |
| No. of Speeds Fan Control | 3 + Turbo |
| Illumination Power in LED (W) | 3W x 2 |
| Type of hood | Chimney hood |
| Oil Filtration Rate | 95% |
| Odor Reduction Rate | NIL |
| Automatic Turbo System | NIL |
| Smart Smoke and Sound Detection | NIL |
| Intelligent Air Management | NIL |
| Anion Sterilisation | NIL |
| Delay Off Function | YES |
| Control Mode | Touch + Wave |
| Type of Filter | Corrugated Filter |
| Special Features | NIL |
| Power Supply | 240V/50hZ |
| Dimension W x D x H (mm) | 895 x 522 x (566-905) |
