Transform. Unfold. Perform
Folds away and is concealed within your cabinets to save space while offering exceptional suction power and whisper-quiet operation, elevating both style and function in your kitchen.
Invisible Design
Collaborate with IDEO International Design Team
FOTILE adopted a seamless, fully concealed design concept. When the range hood is not operating, it blends naturally into the kitchen environment, perfectly balancing practicality and aesthetics.
Dynamic Fold™ Technology
Inspired by aircraft landing gear, FOTILE’s R&D team developed an original folding and lifting mechanism, rigorously certified through 50,000-cycle durability testing and engineered for long-term, reliable performance, with every fold showcasing the precision of advanced engineering.
Brushless Direct-Current Inverter (BLDC)
The BLDC motor delivers 3,100m /h unrestrained airflow and up to 1,450Pa static pressure, ensuring efficient smoke extraction even through long, winding ducts and complex installation spaces.

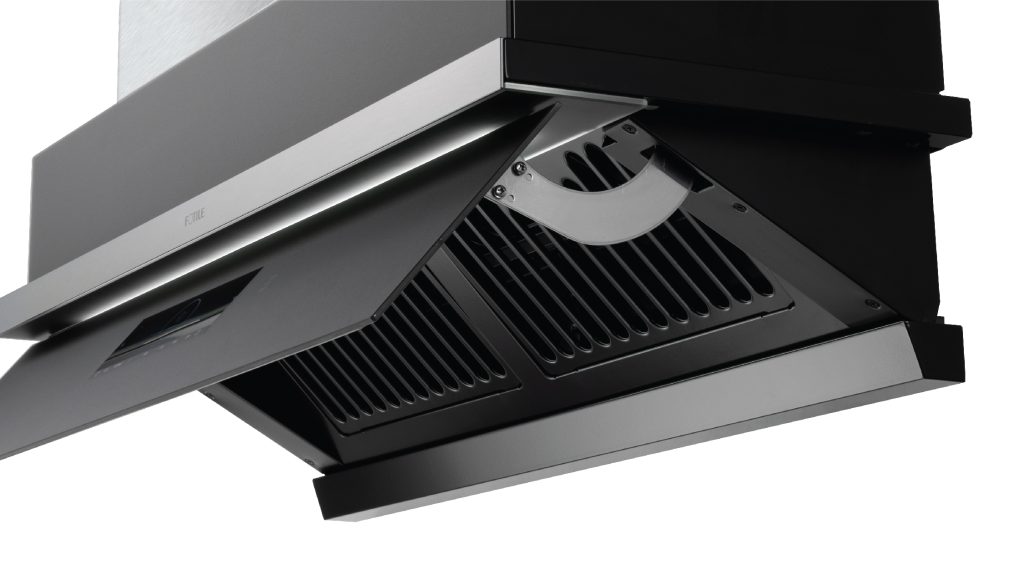

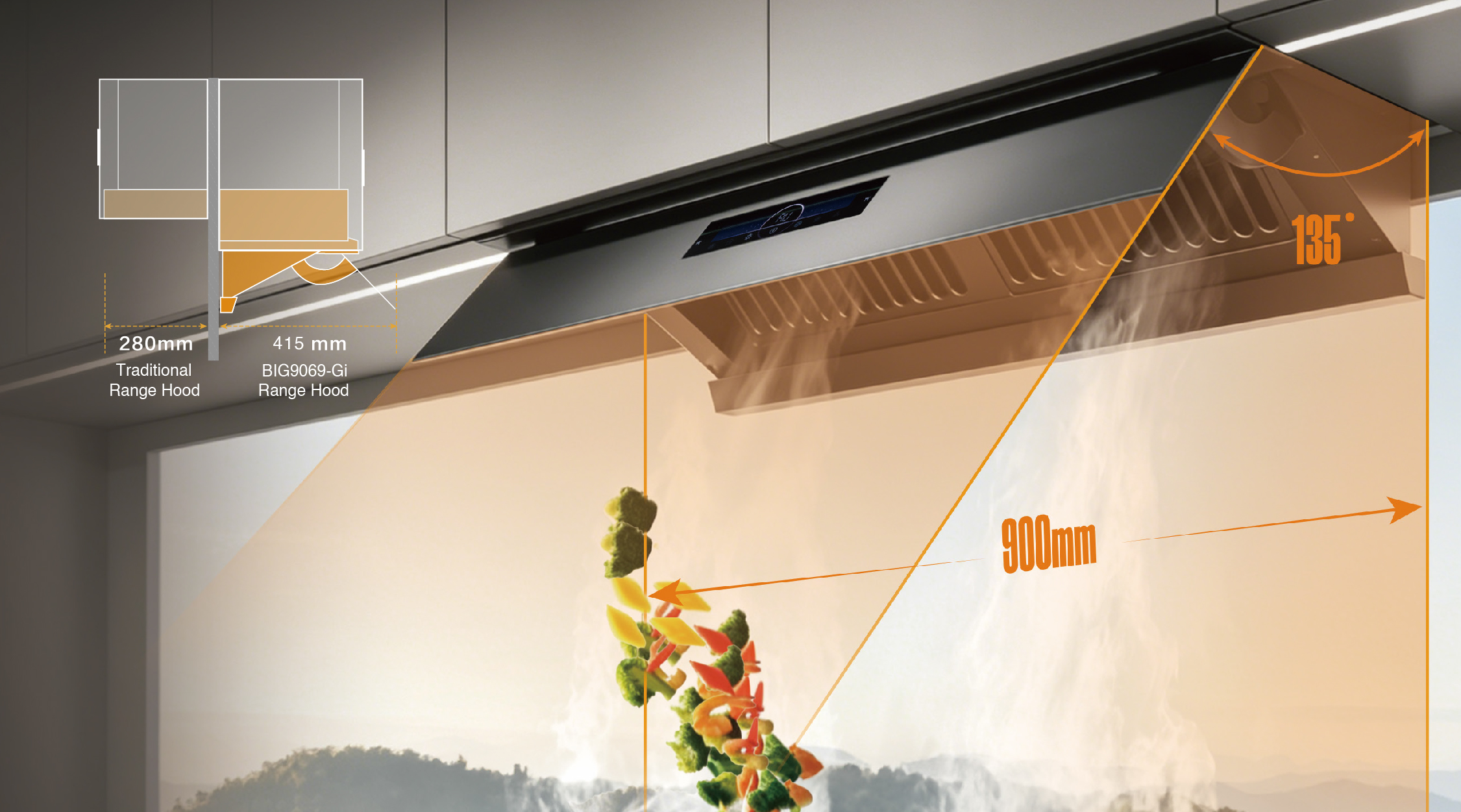

Full Area Smoke Control Captures
The 135° Smoke Buffer Plate extends the hood depth to 415 mm. Compared to traditional fully integrated hoods, this increases the smoke capture area by 48% for more effective smoke and fume capture.

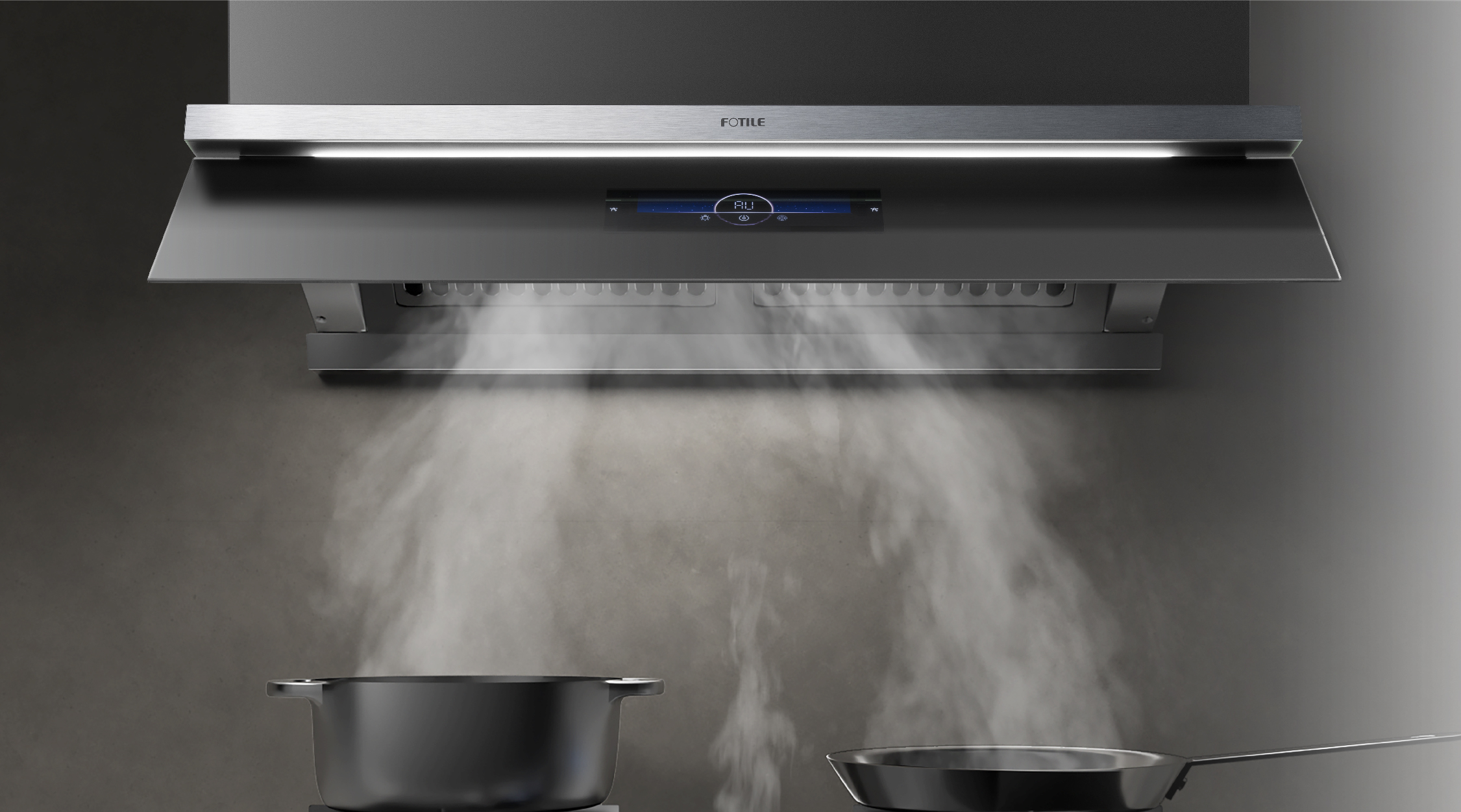

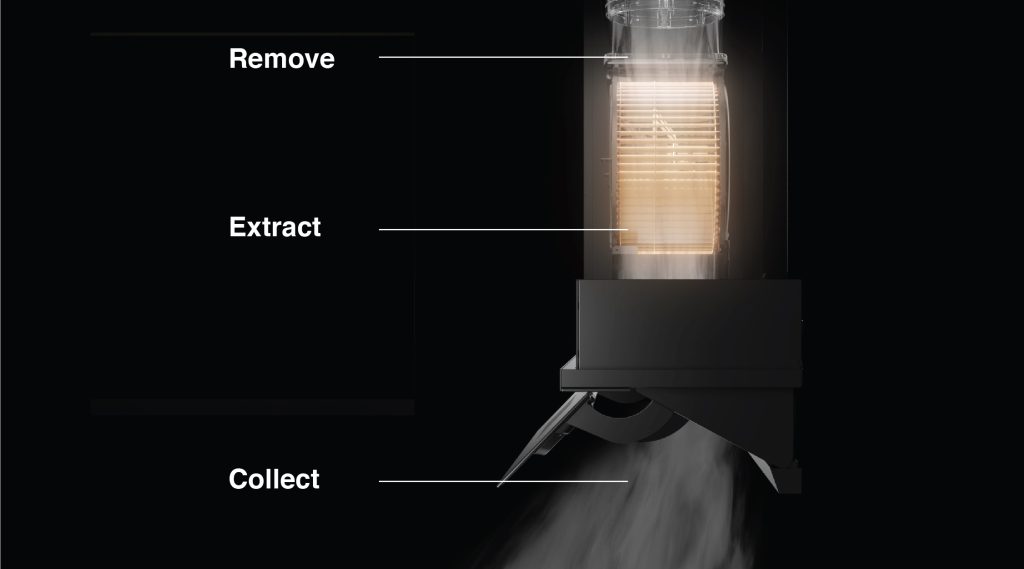

Cooking Smoke Highway
3-point Extraction System, cooking smoke is collected, extracted and removed in a single uninterrupted path.
Low Noise Level
Powered by FOTILE’s Noise + Vibration + Harshness (NVH) Technology and a BLDC motor, this range hood reduce noise at its source, achieving library-level quietness as low as 38dB. Even at high speed, it operates quietly and unobtrusively, allowing you to cook comfortably without interrupting conversations in the kitchen.

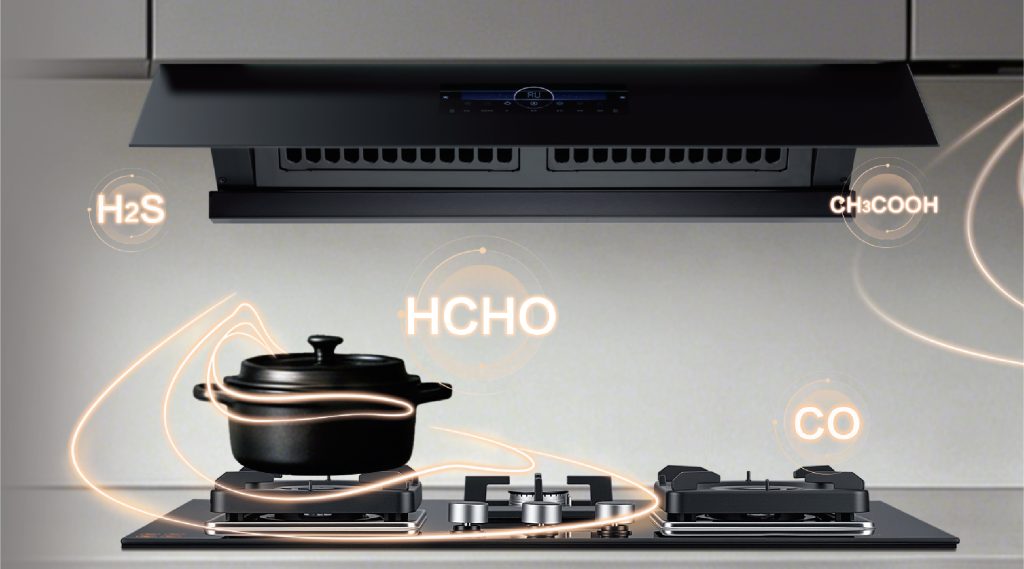

Smart Fresh Air Purification System
The system keeps your kitchen safe and odor-free with Smart Fresh technology. It monitors kitchen air 24 hours a day, automatically detecting cooking odors, food waste smells, formaldehyde, gas leaks, and other harmful gases.

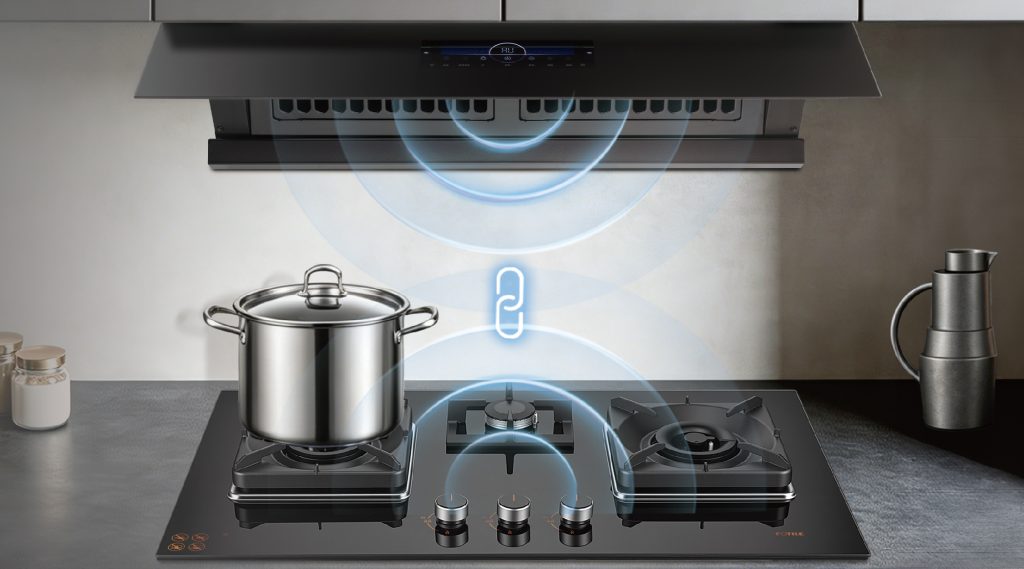

Smart Sync
Sync gas hob with range hood. Upon gas hob ignition, range hood automatically turns on to remove cooking smoke.

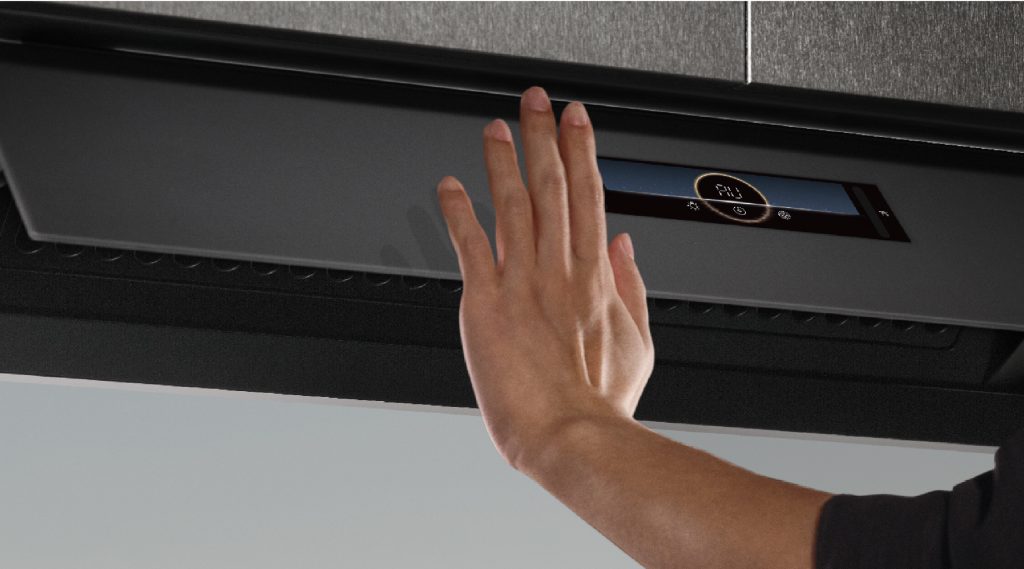

Smart SMOTION Detection
Turn the hood on/off with just a wave of hand.

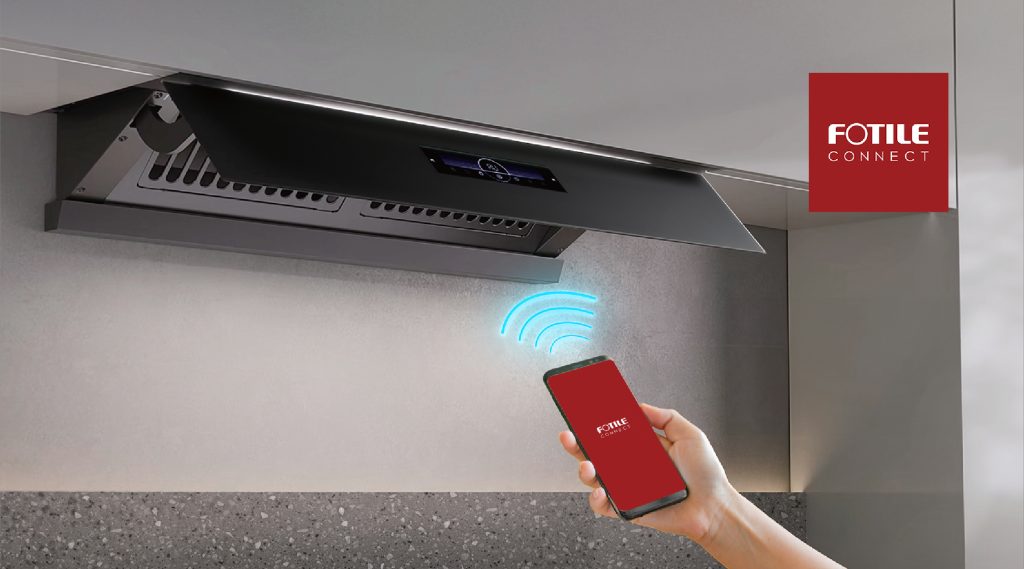

Remote Control With FOTILE Connect App
Stay informed of your kitchen’s status anytime, anywhere. With FOTILE Connect app, your kitchen air freshness is no longer limited to cooking hours.

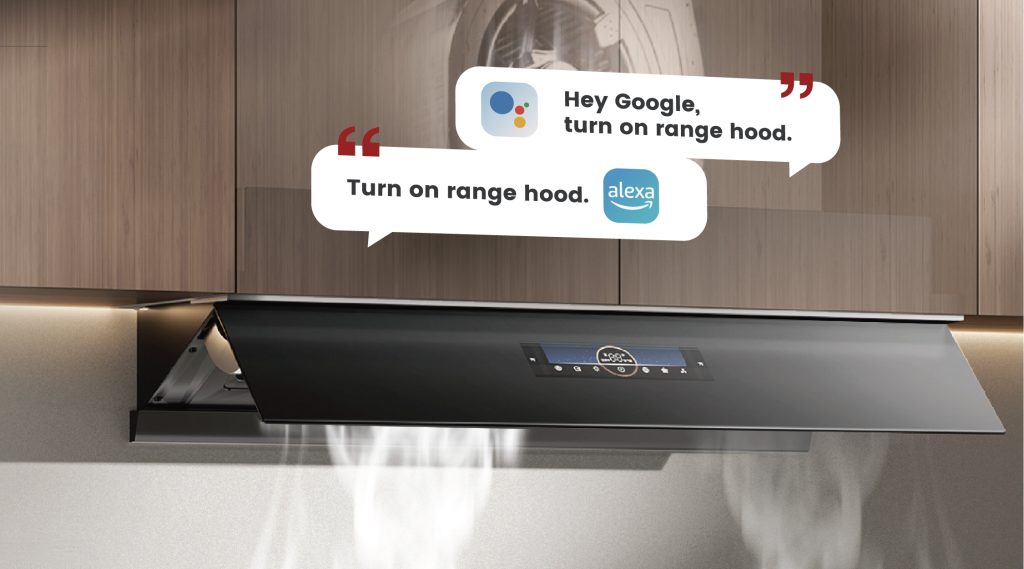

Voice Activated Smart Control
Supported by Google Assistant and Amazon Alexa, simply give a voice command such as “Turn on the range hood” to activate it.

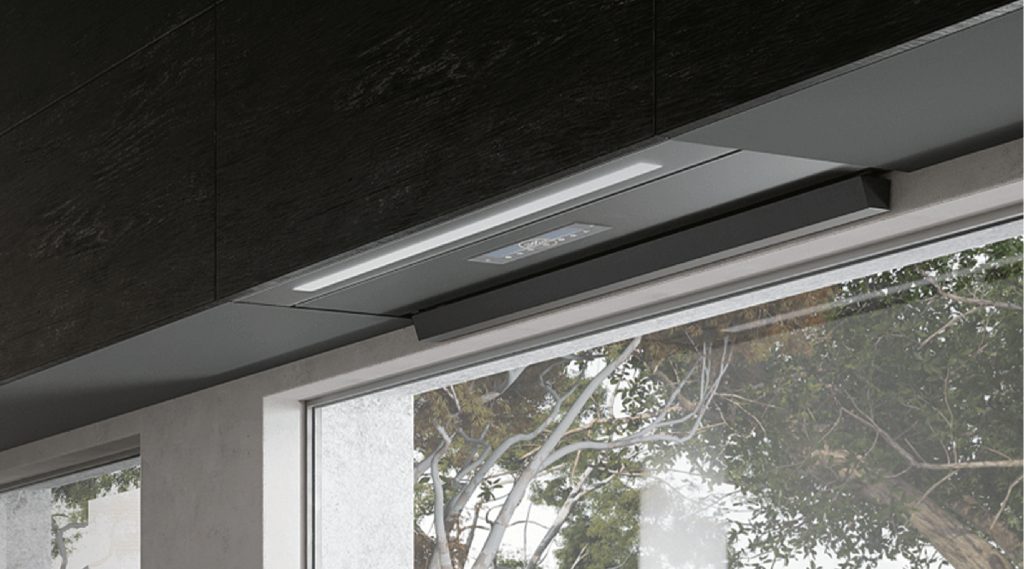

Elegant Design
Concealed inside the cabinet when on standby, creating a minimalist kitchen aesthetic. Flush design makes the kitchen look cleaner and more spacious.
Easy to Clean
Anti-fingerprint glass, an easily detachable oil cup, and removable grille filters make cleaning effortless.
| Certification | CB, SIRIM |
| FOTILE Connect | Yes |
| Type of Motor | Brushless DC Inverter Motor |
| Material of hood | AG Glass |
| Unrestrained airflow (m³/hr) | 3100 |
| Motor Power (W) | 430 |
| IEC airflow (m³/hr) | 1700 |
| Max Static Pressure (Pa) | 1450 |
| Noise Level (dB) | Low 38, Standard 45 |
| No. of Speeds Fan Control | 2+Auto |
| Illumination(W) | 5.5 |
| Type of Hood | Chimney hood |
| Oil Filtration Rate | 92% |
| Odor Reduction Rate | 98% |
| Automatic Turbo System | YES |
| Intelligent Air Management | YES |
| Anion Sterilisation | NIL |
| Delay Off Function | 2 min |
| Control Mode | Soft Touch Control & Hand wave |
| Type of Filter | Dual Removeable Grille Filter |
| Dimension W x D x H (mm) | 897 X 330 X 650 |
